Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation Boards - Embedded - MCU, DSP
Mfr STMicroelectronics
Series STM32F4
Package Box
Product Status Obsolete
Board Type Evaluation Platform
Type MCU 32-Bit
Core Processor ARM® Cortex®-M4
Utilized IC / Part STM32F479
Mounting Type Fixed
Contents Board(s)
Other Names 497-15988
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8471.50.0150
Win Source Part Number 1283985-STM32479I-EVAL
Ultra Librarian 3D Model Ultra Librarian STM32479I-EVAL CAD Model

Description

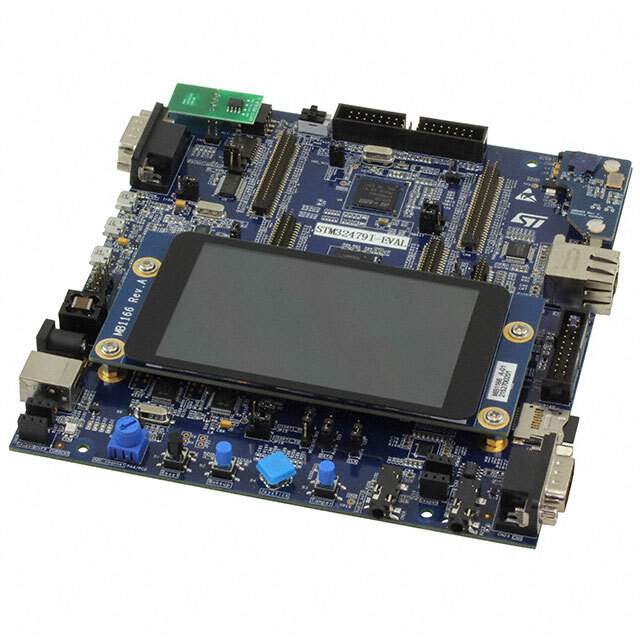

The STM32479I-EVAL evaluation board is a high-end development platform for the STMicroelectronics STM32F4 series of high-performance microcontrollers. Designed to facilitate the prototyping and testing of advanced applications, this board is equipped with the STM32F479NIH6 MCU which boasts an ARM Cortex-M4 processor with a floating-point unit, running at frequencies of up to 180 MHz.

This comprehensive evaluation tool provides a seamless user experience with its range of hardware features. It includes a 4-inch color LCD touchscreen for interactive applications, an Ethernet port for network connectivity, and a variety of connectors that support USB OTG, CAN, RS232 communication, as well as an SDIO interface for SD card applications.

For audio applications, the board is equipped with an audio codec, an audio jack for headphones, and a microphone input. It also features a digital camera interface, making it suitable for image processing projects. The STM32479I-EVAL offers ample memory resources with its external RAM and a Flash memory slot for storage expansion.

Developers can take advantage of the board's multiple GPIOs, analog inputs, and PWM outputs for interfacing with a wide array of sensors, actuators, and other peripherals. The onboard ST-LINK/V2 debugger/programmer ensures easy program loading and debugging without the need for additional hardware.

The board is supported by a range of software, including the STM32CubeF4 MCU Package, which contains the HAL, BSP drivers, as well as a collection of middleware components (RTOS, USB, TCP/IP, Graphics, etc.). The comprehensive development ecosystem facilitates rapid development and testing, making the STM32479I-EVAL an ideal choice for complex and resource-demanding applications.

Whether you're working on real-time control systems, complex digital signal processing, or an IoT device requiring robust connectivity options, the STM32479I-EVAL evaluation board provides a versatile and powerful platform to bring your projects to life.
