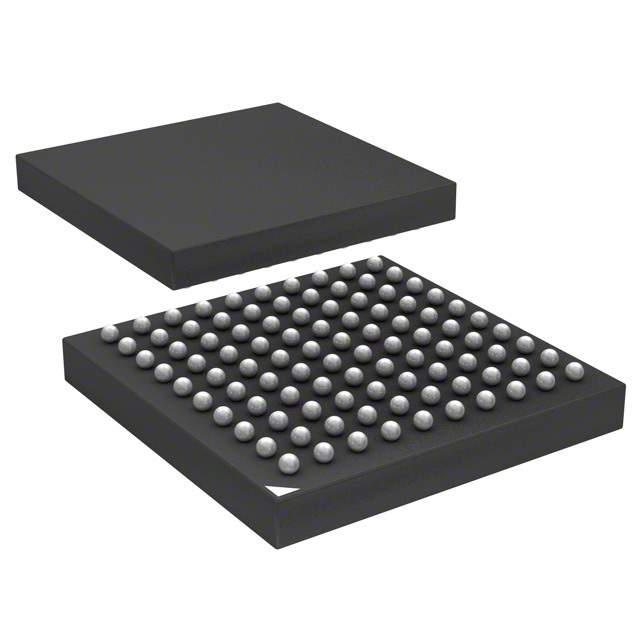

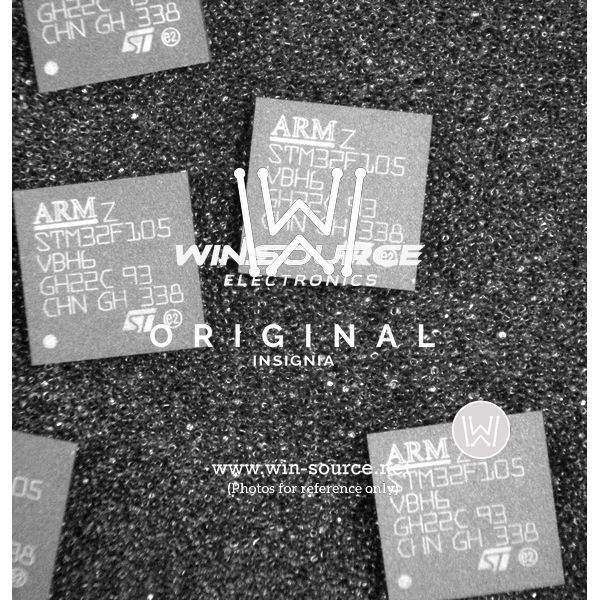

STM32F105VBH6 Microcontroller

The STM32F105VBH6 is a high-performance microcontroller unit (MCU) from STMicroelectronics, which is a part of the STM32F1 series based on the ARM Cortex-M3 processor. This MCU is designed to offer a balanced combination of computing power, reduced power consumption, and innovative peripherals for a wide range of applications.

Key Features

• Core: ARM Cortex-M3 32-bit RISC core operating at a 72 MHz frequency.
• Memory: Equipped with 128 KB of Flash memory and 20 KB of SRAM, providing ample space for complex applications.
• I/Os: Offers up to 51 I/O ports with interrupt capability, which allows for versatile peripheral connections and user interfaces.
• Connectivity: Features USB 2.0 full-speed and CAN interfaces, facilitating communication with other devices and networks.
• ADCs: Includes two 12-bit analog-to-digital converters, with up to 16 channels, providing precise measurement for sensor inputs.
• Timers: Contains multiple timers, including general-purpose and advanced-control timers for complex timing operations.
• Debugging: Supports serial wire debug (SWD) and JTAG interfaces for full-speed system development and debugging.
• Supply Voltage: Operates within a supply voltage range of 2.0 to 3.6V, suitable for battery-powered and embedded applications.
• Temperature Range: Functional across a wide temperature range from -40°C to 85°C, ensuring reliability in harsh environments.
• Packages: Available in a 7x7 mm LQFP 100-pin package, which is ideal for space-constrained applications.

Applications

The STM32F105VBH6 MCU is a versatile component that can be used in various applications, including industrial control systems, medical devices, automotive electronics, and consumer products. Its robust set of features and connectivity options make it particularly well-suited for applications requiring complex communication protocols and real-time performance.

Conclusion

STMicroelectronics' STM32F105VBH6 is a powerful and flexible microcontroller that provides designers with a scalable, low-power, and cost-effective solution. Its integration of advanced peripherals, coupled with the efficiency of the ARM Cortex-M3 core, makes it an excellent choice for a multitude of embedded system applications.
