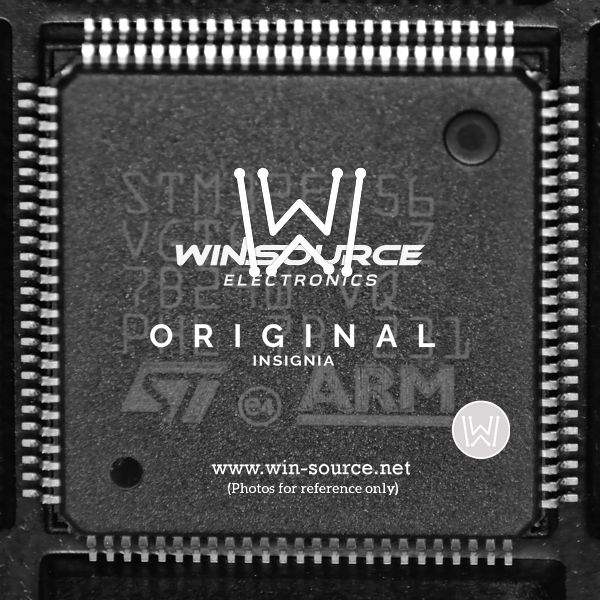

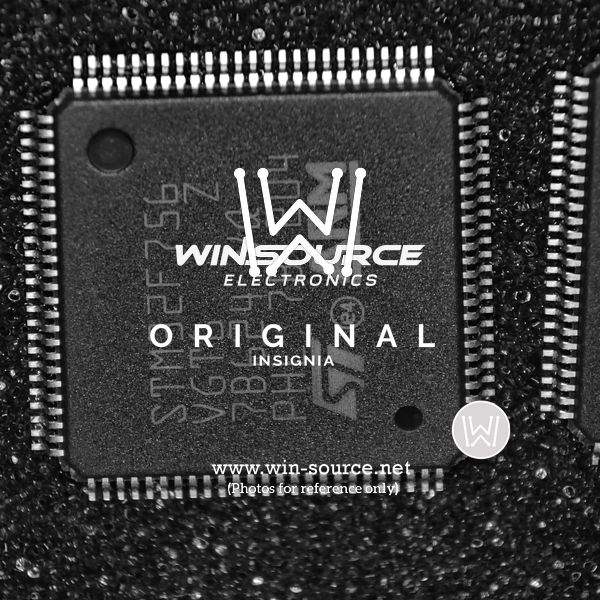

STM32F756VGT6 Microcontroller Overview

The STM32F756VGT6 is a high-performance microcontroller from STMicroelectronics, which is part of their advanced STM32F7 series. This microcontroller is designed to operate at the forefront of the embedded systems market, providing a perfect blend of real-time capabilities, digital signal processing, and low-power operation.

Key Features

• Core: ARM Cortex-M7 processor with a maximum frequency of 216 MHz, delivering 1082 CoreMark/462 DMIPS performance.
• Memory: Features 1 Mbyte of Flash memory and 320 Kbytes of RAM, ensuring ample space for complex applications.
• Graphics: Includes a Chrom-ART Accelerator™ for enhanced graphics, as well as an LCD-TFT controller, supporting vibrant display capabilities.
• Connectivity: Offers a range of connectivity options, including USB OTG HS/FS, Ethernet, CAN, and multiple serial interfaces.

Advanced Peripherals

The STM32F756VGT6 is equipped with numerous advanced peripherals that facilitate a wide array of functions:

• Up to 17 timers, including two PWM timers for motor control.
• Three 12-bit ADCs with 24 channels, ensuring precise analog signal conversion.
• Dual 12-bit DACs for analog waveform generation.
• SDMMC interface for SD card support.

Security and Reliability

Security features include a hardware Random Number Generator (RNG), CRC calculation unit, and a full set of DSP instructions. The device also supports a true hardware encryption accelerator for AES 128, 192, 256, HASH (MD5, SHA-1), and HMAC, as well as a camera interface for connecting CMOS sensors.

Energy Efficiency

The STM32F756VGT6 is designed with energy efficiency in mind, featuring multiple power-saving modes, including a flexible Sleep, Stop, and Standby modes to minimize power consumption during idle periods.

Development and Ecosystem Support

STMicroelectronics provides extensive development support for the STM32F756VGT6 with its comprehensive software HAL library, as well as compatibility with a range of integrated development environments (IDEs) and toolchains. The microcontroller is also supported by the STM32Cube ecosystem, which includes a variety of software tools, libraries, and examples to accelerate development.
