Products specifications

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr STMicroelectronics
Series STM32F4
Package Tray
Core Processor ARM® Cortex®-M4
Core Size 32-Bit Single-Core
Speed 100MHz
Connectivity CANbus, EBI/EMI, I2C, IrDA, LINbus, MMC/SDIO, QSPI, SAI, SPI, UART/USART, USB OTG
Peripherals Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT
Number of I/O 81
Program Memory Size 1MB (1M x 8)
Program Memory Type FLASH
RAM Size 320K x 8
Supply Voltage - Operating 1.7V ~ 3.6V
Data Converters A/D 16x12b; D/A 2x12b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 100-UFBGA
Supplier Device Package 100-UFBGA (7x7)
Base Product Number STM32F413
Other Names 497-17013
Standard Package 416
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Win Source Part Number 1262842-STM32F413VGH6
Ultra Librarian 3D Model Ultra Librarian STM32F413VGH6 CAD Model

Description

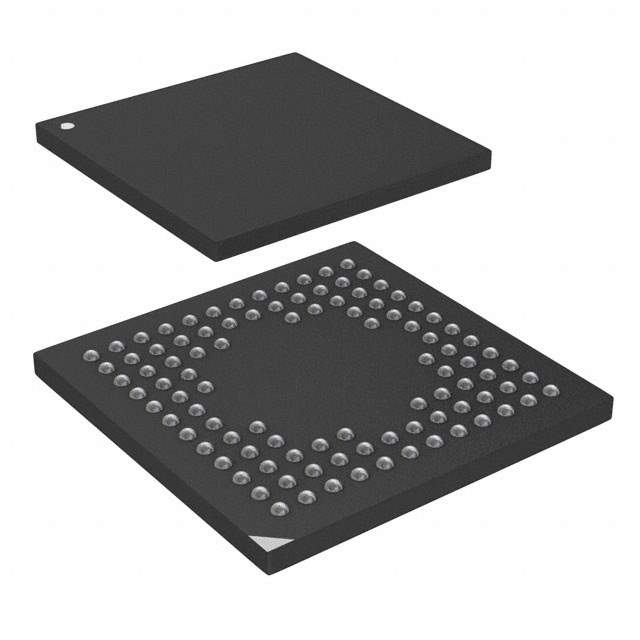

STM32F413VGH6 Microcontroller - STMicroelectronics

The STM32F413VGH6 is a high-performance microcontroller from STMicroelectronics, which is part of their STM32F4 series renowned for its ARM Cortex-M4 core with a Floating Point Unit (FPU). This advanced microcontroller is designed to offer a perfect balance between power efficiency and processing capability, making it ideal for a wide range of applications in industrial, consumer, healthcare, and IoT domains.

Key Features:

  • Core: ARM® Cortex®-M4 with DSP and FPU instructions, running at up to 100 MHz.
  • Memory: 1.5 Mbytes of Flash memory and 320 Kbytes of SRAM, which provides ample storage for complex applications.
  • Rich Connectivity: Includes a USB OTG Full-Speed with on-chip PHY, CAN, and SAI audio interfaces, ensuring versatile peripheral connections.
  • Advanced Analog: Features two 12-bit DACs, three 12-bit ADCs reaching 2.4 MSPS, and a low-power RTC with a dedicated oscillator.
  • Enhanced I/Os and peripherals: Support for up to 17 timers, including two PWM timers for motor control and an LCD parallel interface for display applications.
  • Security: Offers a True Random Number Generator and a range of cryptographic hardware accelerators for AES, HASH (MD5, SHA-1), and HMAC.
  • Energy Efficiency: Implements ST's ART Accelerator™, as well as a dynamic power scaling feature, which reduces the power consumption in run mode.
  • Development Support: Comprehensive development ecosystem with a wide range of software tools, libraries, and support from STMicroelectronics.

Applications:

The STM32F413VGH6 microcontroller's combination of processing power, memory capacity, and rich set of peripherals makes it suitable for a variety of applications, such as:

  • High-performance embedded systems
  • Industrial control and automation
  • Internet of Things (IoT) devices
  • Medical devices and equipment
  • Consumer electronics
  • Audio and graphical applications

In conclusion, the STM32F413VGH6 from STMicroelectronics is a versatile and powerful microcontroller that provides designers with the tools needed to create innovative and efficient products in a competitive market.
