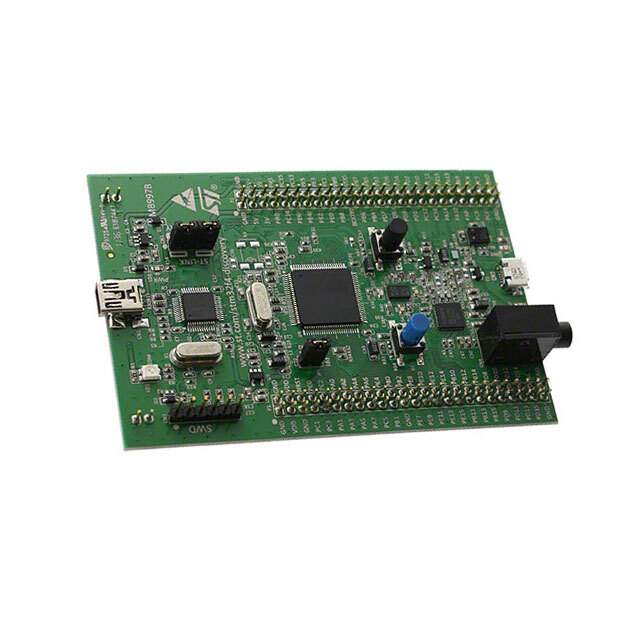

The STM32F4DISCOVERY kit leverages the capabilities of the STM32F407VGT6 microcontroller to enable users to easily develop and share applications. It is particularly well-suited for those looking to explore the advanced features of the STM32F4 series and its high-performance ARM Cortex-M4 32-bit RISC core. Operating at a frequency of up to 168 MHz, the microcontroller in this discovery kit is complemented by an extensive range of enhanced I/Os and peripherals.
Key Features:
- STM32F407VGT6 microcontroller featuring 1 Mbyte of Flash memory and 192 Kbytes of RAM in an LQFP100 package
- On-board ST-LINK/V2 for PCB version A or B or ST-LINK/V2-B for PCB version C and newer, with selection mode switch to use the kit as a standalone ST-LINK/V2 (with SWD connector for programming and debugging)
- Board power supply: through USB bus or from an external 5 V supply voltage
- External application power supply: 3 V and 5 V
- LIS302DL or LIS3DSH ST MEMS 3-axis accelerometer
- MP45DT02 ST MEMS audio sensor omni-directional digital microphone
- CS43L22 audio DAC with integrated class D speaker driver
- Eight LEDs: four user LEDs, one USB OTG FS LED, one over-current LED, one power LED, and one ST-LINK/V2 communication LED
- Two pushbuttons: USER and RESET
- USB OTG FS with micro-AB connector
- ARM® mbed™-enabled (http://mbed.org)
With its range of built-in features, the STM32F4DISCOVERY kit offers a variety of functionalities that make it an ideal platform for complex applications. The integrated accelerometers and audio sensors allow for the development of motion-sensitive and audio-reactive applications, while the audio DAC and class D speaker driver enable high-quality audio output.
The discovery kit is also designed to be user-friendly, featuring a USB OTG full-speed connection, LEDs, and pushbuttons for easy interaction and feedback. The inclusion of the ST-LINK/V2 makes programming and debugging straightforward, without the need for additional hardware.
Whether you're a professional engineer, a student, or a hobbyist, the STM32F4DISCOVERY kit from STMicroelectronics is a versatile and affordable platform for exploring the advanced features of the STM32F4 series and creating innovative embedded applications.
