STM32F765NGH6 Microcontroller - STMicroelectronics

The STM32F765NGH6 is a high-performance microcontroller from STMicroelectronics, designed to offer the best efficiency and versatility for a wide range of applications. This advanced microcontroller is part of the STM32F7 series, which is built on the Cortex-M7 core, providing the highest processing power in the STM32 family with a maximum CPU frequency of 216 MHz.

Key Features

• Core: ARM Cortex-M7 with double-precision floating point unit (FPU)
• Maximum Frequency: 216 MHz
• Flash Memory: 1 Mbyte with read-while-write support
• RAM: 340 Kbytes, including 64 Kbytes of data TCM RAM for critical real-time data + 4 Kbytes of backup SRAM
• Graphics: Chrom-ART Accelerator™ for enhanced graphic content creation
• Audio: SAI audio interface
• Connectivity: Up to 4 I2Cs, 4 USARTs, 4 UARTs, 6 SPIs, 2 SAI, 3 I2S in slave and master mode
• Advanced Peripherals: Includes USB OTG HS/FS, 2 CANs, 2 SDIO, 16- and 32-bit timers including two PWM timers for motor control
• Security: Hardware encryption, CRC calculation unit, RNG, and hash processor
• Power Efficiency: Multiple power-saving modes including Stop, Standby, and VBAT mode

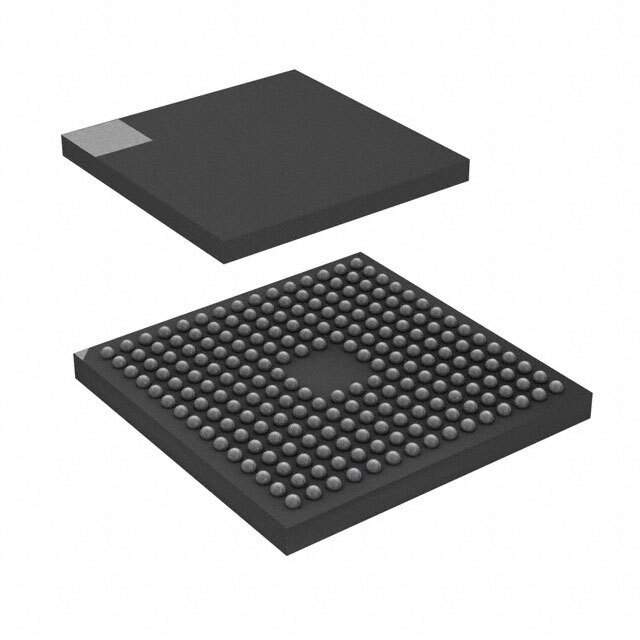

• Package: UFBGA 216+25 balls

Advanced Integration

The STM32F765NGH6 integrates a variety of features to support complex and demanding applications. Its comprehensive set of peripherals makes it suitable for high-end embedded applications, including industrial control, medical equipment, and IoT devices. The device's advanced graphics capabilities allow for smooth and dynamic user interfaces, while the audio interfaces enable high-quality audio applications.

Development Support

Developers can take advantage of extensive development ecosystems, including the STM32Cube software suite and a wide range of development boards. The STM32F765NGH6 is supported by various development tools and software, making it easier to bring your projects to life.

Applications

With its robust architecture and rich set of features, the STM32F765NGH6 is ideal for applications requiring high computational power and real-time performance, such as advanced motor control, industrial automation, high-speed connectivity, and precise audio and graphical rendering.
