Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr STMicroelectronics
Series STM32H7
Package Tray
Core Processor ARM® Cortex®-M4/M7
Core Size 32-Bit Dual-Core
Speed 240MHz, 480MHz
Connectivity CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG
Peripherals Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT
Number of I/O 148
Program Memory Size 2MB (2M x 8)
Program Memory Type FLASH
RAM Size 1M x 8
Supply Voltage - Operating 1.62V ~ 3.6V
Data Converters A/D 32x16b; D/A 2x12b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)

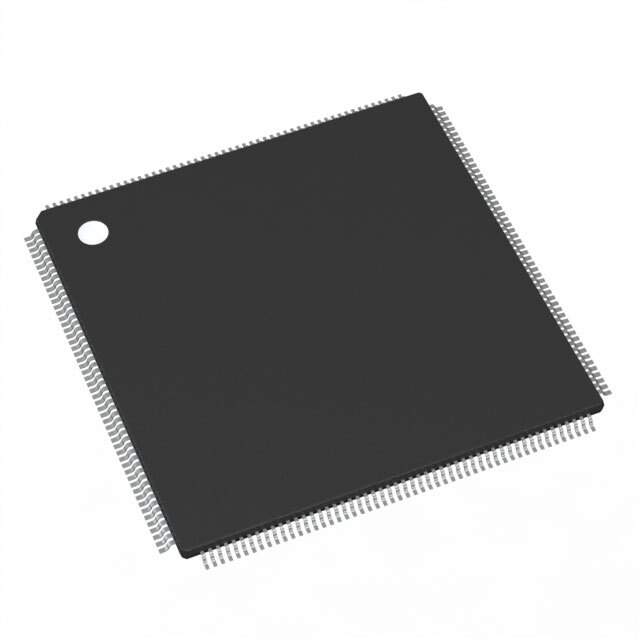

Package / Case 208-LQFP
Supplier Device Package 208-LQFP (28x28)
Base Product Number STM32
Standard Package 360
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Win Source Part Number 1262567-STM32H745BIT6
Ultra Librarian 3D Model Ultra Librarian STM32H745BIT6 CAD Model

Description

The STM32H745BIT6 is a state-of-the-art microcontroller product from STMicroelectronics, designed to deliver high-performance and versatile functionalities for a wide range of applications. This microcontroller is part of the STM32H7 series, which are known for their exceptional processing power and efficiency, making them ideal for complex and demanding tasks.

At the heart of the STM32H745BIT6 is a dual-core architecture that features an ARM® Cortex®-M7 core running at up to 480 MHz and a Cortex®-M4 core running at up to 240 MHz. This dual-core system allows for seamless operation and efficient task sharing, which significantly improves the overall performance of the microcontroller. The cores can run in parallel or independently, providing flexibility in how tasks are managed and executed.

With a Flash memory size of 1 Mbyte and 1 Mbyte of RAM, the STM32H745BIT6 provides ample storage for complex applications. Additionally, it offers a rich set of peripherals, including multiple timers, ADCs, DACs, USARTs, SPIs, I2Cs, and advanced digital interfaces such as USB OTG, Ethernet, and CAN. This extensive range of connectivity options ensures that the microcontroller can handle various communication protocols, making it suitable for IoT devices, industrial control systems, and sophisticated consumer electronics.

The integration of advanced security features is another highlight of the STM32H745BIT6. It includes hardware support for AES 256-bit encryption, ensuring secure data transactions. Furthermore, a memory protection unit (MPU) enhances the safety of the system by preventing unauthorized memory access, and a boot protection mechanism secures the boot process.

For developers, the STM32H745BIT6 is supported by a comprehensive set of development tools, including the STM32Cube ecosystem, which provides software libraries and hardware abstraction layers to streamline application development. The compatibility with a wide range of integrated development environments (IDEs) and real-time operating systems (RTOS) makes it a flexible choice for developers looking to create robust and sophisticated applications.

In summary, the STM32H745BIT6 from STMicroelectronics is a powerful and versatile microcontroller that offers a perfect blend of performance, connectivity, and security for advanced embedded systems.
