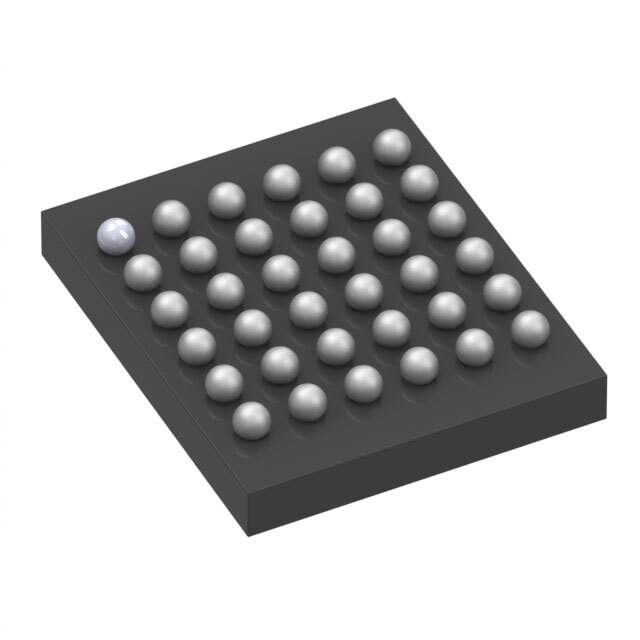

STM32L422TBY6TR Microcontroller

The STM32L422TBY6TR is a highly efficient microcontroller unit (MCU) from STMicroelectronics, which is part of their Ultra-low-power STM32L4 series. This product is designed for optimal energy-saving performance without compromising on processing capabilities, making it an ideal choice for a wide range of applications, including wearables, smart sensors, and IoT devices.

Key Features

• Core: ARM Cortex-M4 with Floating Point Unit (FPU) and DSP instructions, providing a balance between power efficiency and computational performance.
• Operating Frequency: Up to 80 MHz, which ensures swift processing of tasks in real-time applications.
• Memory: Includes 256 KB of Flash memory and 64 KB of SRAM, suitable for complex operations and multitasking environments.
• Energy Efficiency: The device features multiple power-saving modes, including a low-power run mode, sleep mode, and several standby modes with flexible wake-up options.
• Rich Connectivity: Comes with a comprehensive set of peripherals including USART, SPI, I2C, USB, and CAN interfaces for versatile connectivity options.
• 12-bit Analog-to-Digital Converters (ADCs): Provides precise analog signal measurements, useful for sensor interfacing and data acquisition tasks.
• Package: Available in a 36-lead UFQFPN package, which is compact and suitable for space-constrained applications.

Advanced Peripherals and Security

The STM32L422TBY6TR is equipped with advanced peripherals, including a True Random Number Generator (TRNG) for enhanced security and encryption-related tasks. It also supports a range of timers, watchdogs, and a SysTick timer that facilitate precise timing operations.

Development and Debugging Support

STMicroelectronics provides extensive support for development and debugging. The STM32L422TBY6TR is supported by a wide range of development tools, including the STM32Cube ecosystem, which offers software libraries and hardware abstraction layers to streamline application development. In-circuit debugging and programming are facilitated via the integrated SWD (Serial Wire Debug) interface.

Environmental Compliance

This MCU is RoHS compliant and is designed with a consideration for environmental impact, adhering to international regulations regarding hazardous substances.

In summary, the STM32L422TBY6TR from STMicroelectronics is a robust and versatile microcontroller that delivers exceptional performance and energy efficiency for demanding applications, while also providing advanced features and comprehensive development support.
