Products specifications

Categories Integrated Circuits (ICs)
Manufacturer STMicroelectronics
Packaging Reel - TR
Type Linear
Topology Shift Register
Internal Switch(s) Yes
Number of Outputs 4
Voltage Supply MIN 3.3V
Voltage Supply MAX 5.5V
Voltage - Output 19V
Output Current per Channel 400mA
Frequency 30MHz
Operating Temperature Range -40°C ~ 125°C (TA)
Mounting SMD

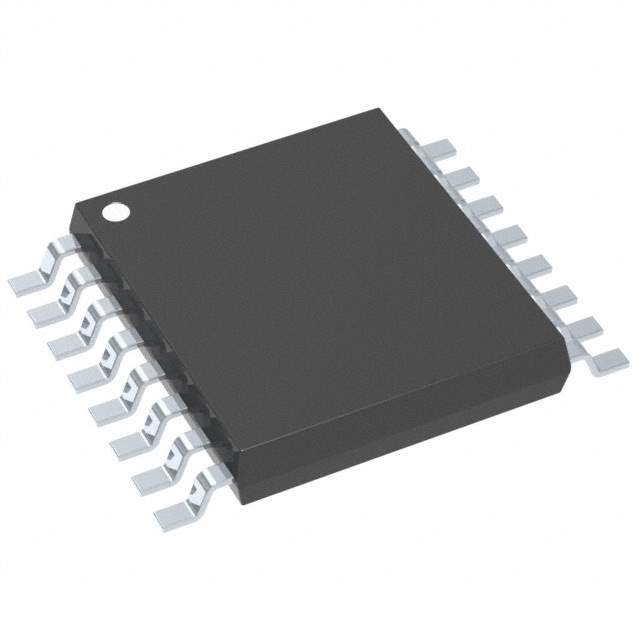

Package 16-TSSOP (0.173", 4.40mm Width) Exposed Pad
Manufacturer Package 16-HTSSOP
Win Source Part Number 1261647-STP04CM05XTTR
Manufacturer Homepage www.st.com
Popularity Medium
Supply and Demand Status Limited
Family Name STP04CM05XTTR
Introduction Date November 26, 2007
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian STP04CM05XTTR CAD Model

Description

The STP04CM05XTTR is a cutting-edge LED sink driver designed and manufactured by STMicroelectronics, a global semiconductor leader known for their innovative and reliable components. This device is specifically engineered to enhance the performance and efficiency of LED lighting solutions. It is a part of ST's power management integrated circuits and is widely used in applications where precise LED current regulation is necessary.

Key Features

  • Output Current Regulation: The STP04CM05XTTR offers excellent output current regulation, which ensures consistent illumination and prolongs LED life.
  • Channels: It contains four constant current output channels, which are designed to provide uniform brightness and color consistency across multiple LEDs.
  • Voltage Range: This device operates over a wide supply voltage range, making it versatile for various LED applications.
  • Thermal Protection: It comes with built-in thermal shutdown protection, which safeguards the device and the LEDs from overheating, thus ensuring a longer lifespan.
  • Efficiency: The high efficiency of the STP04CM05XTTR minimizes power loss and heat generation.

Applications

The STP04CM05XTTR is ideal for a wide range of LED lighting applications, including:

  • Automotive lighting
  • Backlighting for LCD displays
  • General-purpose LED lighting
  • Signal and marker lights

Package and Availability

This LED sink driver is available in a TSSOP24 package, which is suitable for surface-mounted technology (SMT) and is designed to occupy minimal space on a PCB. The part number STP04CM05XTTR indicates that the device is provided in tape and reel packaging, which facilitates automated assembly processes for high-volume production.

In conclusion, the STP04CM05XTTR from STMicroelectronics represents a robust and efficient solution for driving LEDs with precision and reliability. Its integration into LED systems can significantly enhance performance while ensuring energy efficiency and longevity of the lighting components.
