Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr STMicroelectronics
Package Tube
Product Status Obsolete
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 120 V
Current - Average Rectified (Io) (per Diode) 15A
Voltage - Forward (Vf) (Max) @ If 920 mV @ 15 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 15 µA @ 120 V
Operating Temperature - Junction 175°C (Max)
Mounting Type Through Hole
Package / Case TO-220-3
Supplier Device Package TO-220AB Narrow Leads
Base Product Number STPS30120
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 497-15151-5,STPS30120CTN-ND,-497-15151-5
Standard Package 50
Win Source Part Number 1153223-STPS30120CTN
Ultra Librarian 3D Model Ultra Librarian STPS30120CTN CAD Model

Description

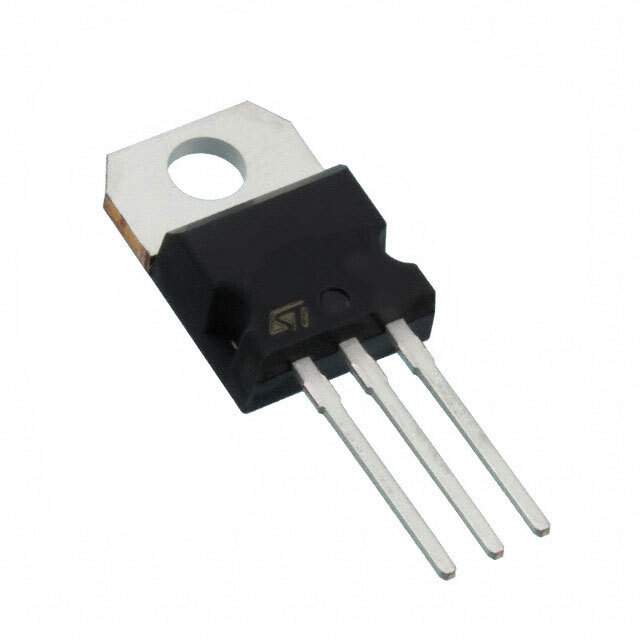

The STPS30120CTN is a robust power Schottky rectifier designed by STMicroelectronics, a leader in semiconductor solutions. This rectifier is tailored for high-performance applications that demand efficiency, reliability, and thermal management. The device is housed in a TO-220AB narrow package, which is well-suited for high-density circuit designs.

Key Features

  • Voltage Rating: The STPS30120CTN boasts a repetitive peak reverse voltage (V<sub>RRM) of 120V, making it suitable for a range of applications that require a high breakdown voltage.
  • Forward Current: It offers a high average forward current (I<sub>F(AV)) of up to 30A, which is ideal for high-power applications.
  • Low Forward Voltage Drop: The device features a low forward voltage drop (V<sub>F), reducing power dissipation and improving efficiency.
  • High Junction Temperature: With an operating junction temperature range of -40°C to +175°C, the STPS30120CTN is designed to withstand extreme conditions.
  • Dual Center Tap Configuration: The dual diode arrangement with a common cathode (center tap) allows for flexibility in circuit designs, particularly in bridge configurations.
  • High Surge Capability: It is capable of handling high surge currents, providing robust protection against transient voltage spikes.

Applications

The STPS30120CTN is versatile and can be used in a variety of applications, including:

  • Switch-mode power supplies (SMPS)
  • Power management systems
  • DC-DC converters
  • Free-wheeling diodes in motor control circuits
  • Automotive applications
  • Reverse battery protection

With its exceptional performance and reliability, the STPS30120CTN from STMicroelectronics is a top choice for engineers and designers looking to enhance their power management systems. Its thermal and electrical characteristics ensure that it can meet the rigorous demands of both industrial and automotive applications, providing a versatile solution for modern electronic systems.
