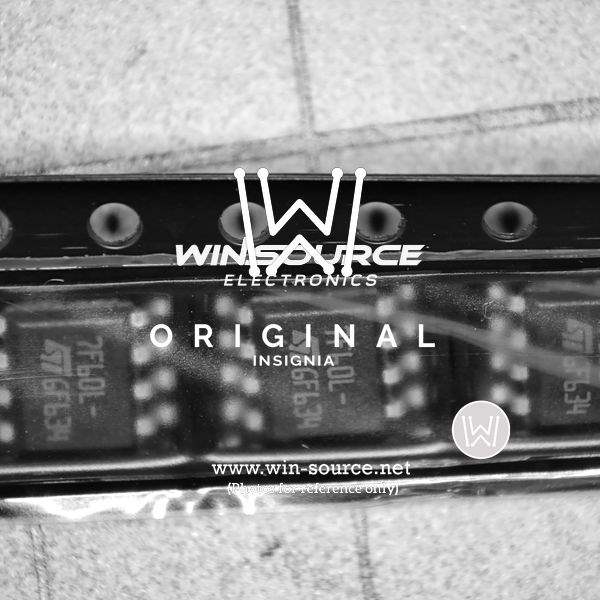

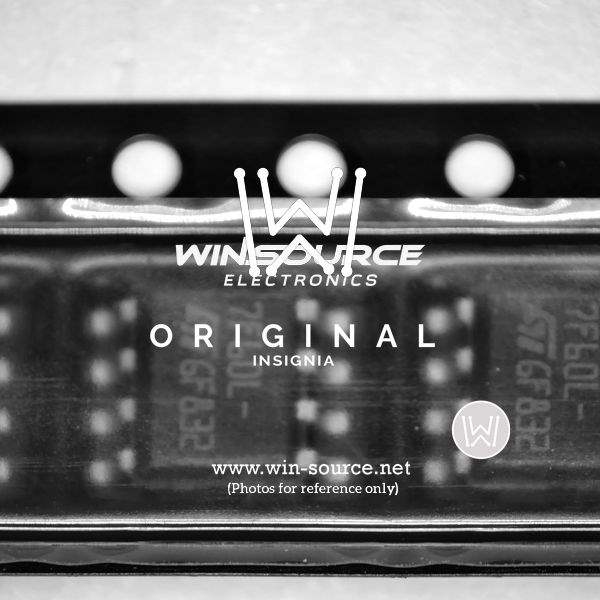

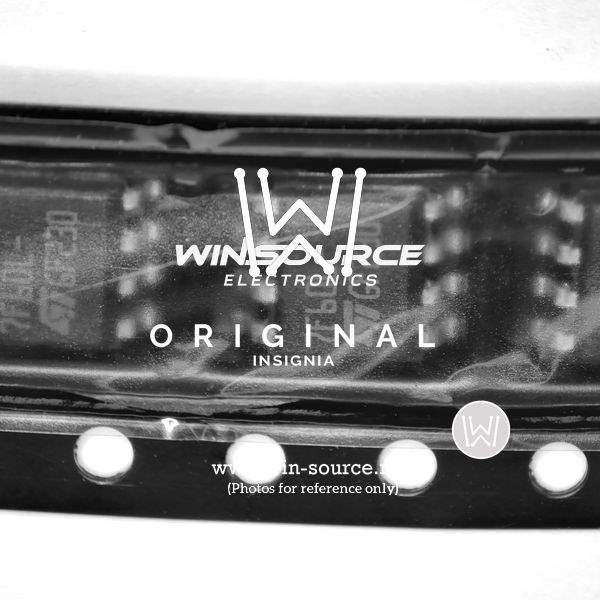

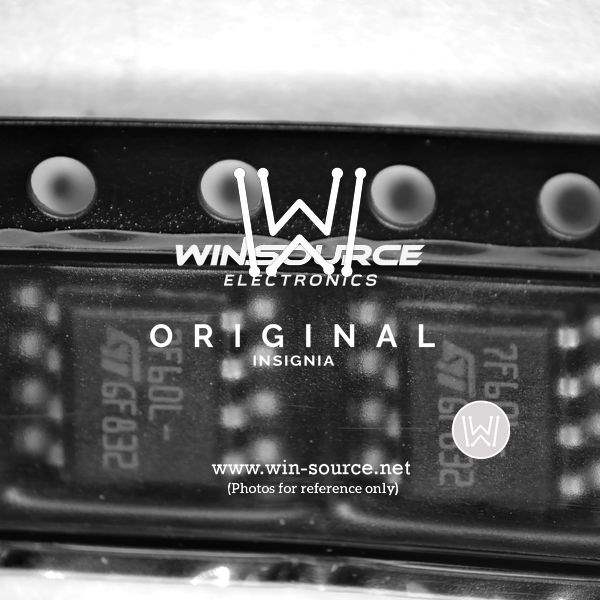

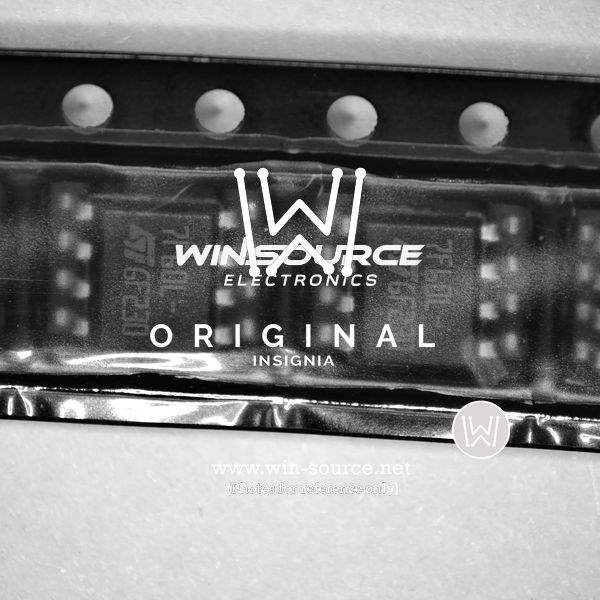

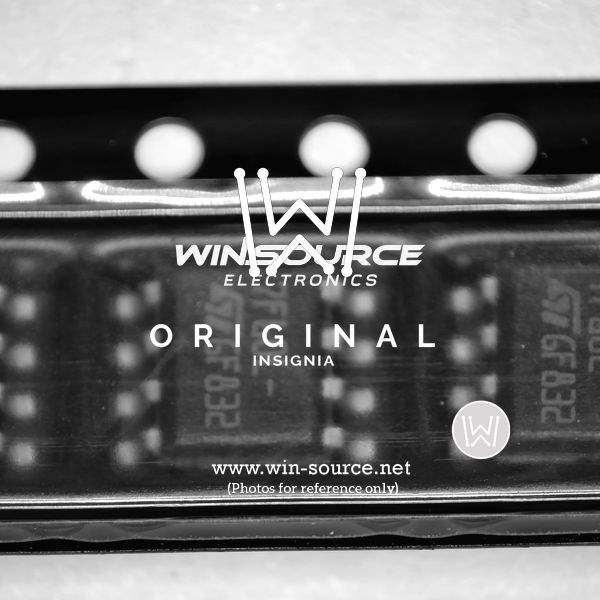

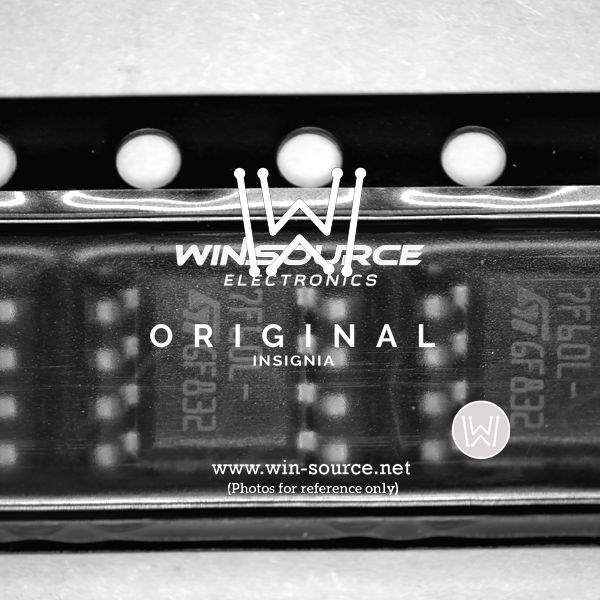

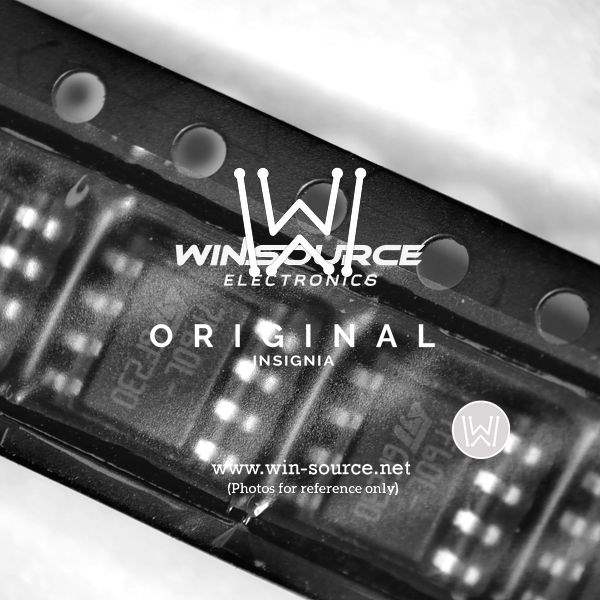

The STS7NF60L is a high-performance Power MOSFET produced by STMicroelectronics, designed to meet a wide range of efficiency and reliability requirements in various electronic applications. This device is part of STMicroelectronics' STripFET™ series, which is known for its low on-resistance and low gate charge, making it a suitable choice for high-efficiency power management tasks.

Key Features

• Low On-Resistance (R<sub>DS(on)): This MOSFET boasts an exceptionally low drain-source on-resistance, which translates to reduced conduction losses and improved overall efficiency in power conversion applications.
• High Switching Speed: The STS7NF60L is designed for fast switching, allowing for high-frequency operation which is essential in modern power supply designs and DC-DC converters.
• Low Gate Charge (Q<sub>g): Its low gate charge ensures minimal switching losses and is particularly beneficial when driving the MOSFET with low-power or battery-operated drivers.
• 100% Avalanche Tested: Each unit is rigorously tested for avalanche ruggedness, ensuring reliability and robustness in applications where the MOSFET may be subjected to high-energy pulses.
• Logic Level Version: This device is compatible with 5V logic signals, making it easy to interface with microcontrollers and other logic-level devices without the need for additional level-shifting components.

Applications

The STS7NF60L is versatile and can be used in a variety of applications. It is particularly well-suited for:

• Switching regulators
• DC-DC converters
• Motor control circuits
• Power management functions
• Load switching
• High-efficiency power supplies

With its combination of low on-resistance, high switching speed, and low gate charge, the STS7NF60L from STMicroelectronics is an excellent choice for designers looking to optimize power efficiency and reliability in their electronic designs. Its robust construction and comprehensive testing ensure that it can withstand the rigors of demanding applications, making it a dependable component for a wide range of industrial and consumer products.
