ON Semiconductor FDMD8560L PowerTrench® MOSFET

The FDMD8560L from ON Semiconductor is a high-performance PowerTrench® MOSFET designed to deliver efficient power management and conversion for a wide range of applications. This MOSFET utilizes advanced processing techniques to achieve low on-resistance per silicon area, which results in a compact, high-efficiency solution for electronic systems.

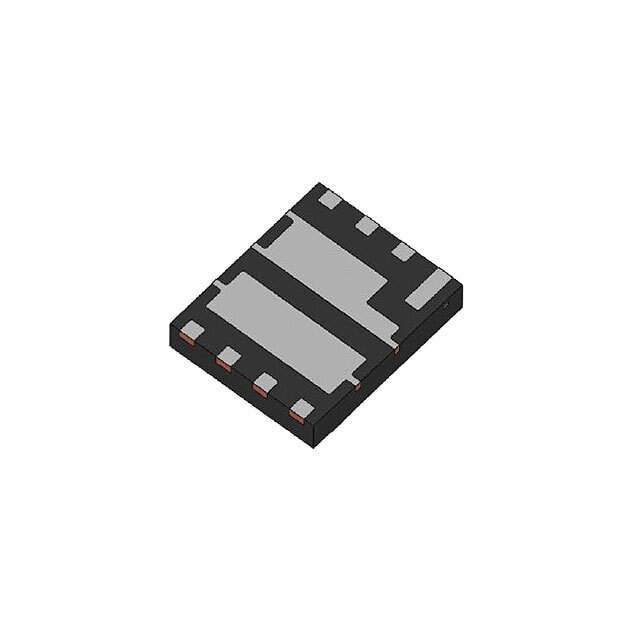

With its low profile and small footprint, the FDMD8560L is particularly suitable for space-constrained applications. The device comes in an 8-MLP (Multi-Lead Package) measuring just 5x6 mm, offering a compact power management solution without compromising on performance. This makes it ideal for implementing in portable devices, computing applications, power supplies, DC-DC converters, and more.

The FDMD8560L is characterized by its low R<sub>DS(on) and low gate charge, which leads to reduced conduction and switching losses, enhancing overall system efficiency. The device is rated for a drain-source voltage (V<sub>DSS) of 25V and a continuous drain current (I<sub>D) of 15A at 25°C, making it robust enough for handling significant power levels.

In terms of protection, the FDMD8560L features a 100% avalanche tested design, ensuring reliability under extreme conditions. This MOSFET also exhibits excellent thermal performance due to its PowerTrench process technology, which allows for better heat dissipation and improved safe operating area (SOA).

ON Semiconductor's commitment to environmental sustainability is reflected in the FDMD8560L, which is RoHS compliant and free from Halogen compounds, minimizing the environmental impact of electronic components.

In summary, the FDMD8560L is a versatile, high-efficiency MOSFET that offers a superior solution for power management challenges. Its low on-resistance, high current capability, and thermal efficiency make it a go-to choice for designers looking to optimize their power systems for performance and space.
