Products specifications

Manufacturer STMicroelectronics
Win Source Part Number 1262116-STTA3006PI
Manufacturer Homepage www.st.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian STTA3006PI CAD Model

Description

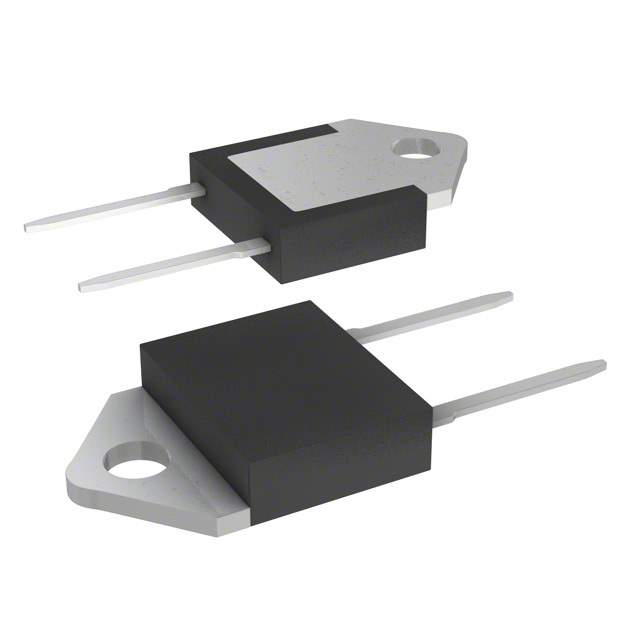

The STTA3006PI is a cutting-edge power diode from STMicroelectronics, designed to meet the demands of modern high-frequency power switching applications. This ultra-fast high voltage tandem diode is part of the Turbo 2 ultrafast high voltage series, which is renowned for its exceptional performance in terms of switching speed and robustness.

Key Features:

  • High Reverse Voltage: With a peak reverse voltage (VRRM) of 600V, the STTA3006PI is capable of handling high voltage applications with ease, making it suitable for a wide range of industrial and consumer products.
  • Ultra-Fast Switching: The device boasts an ultra-fast recovery time, reducing switching losses and improving the efficiency of the application it is used in. This is particularly beneficial in high-frequency circuits.
  • High Surge Current Capability: Its high surge current capability ensures that the diode can handle the high overcurrent conditions that typically occur during equipment startup or abnormal operation.
  • Low Reverse Recovery Charge (Qrr): The low Qrr minimizes the energy wasted during the diode's recovery process, contributing to the overall energy efficiency of the system.
  • Insulated Package: The STTA3006PI comes in an insulated package, providing electrical isolation from the heatsink and ensuring safety in operation.

Applications:

The STTA3006PI is ideal for a variety of applications, including:

  • Switching power supplies
  • Motor control circuits
  • Power management systems
  • Snubber circuits
  • Free-wheeling diodes for inductive loads

Reliability and Performance:

STMicroelectronics is committed to delivering products that exceed industry standards for reliability and performance. The STTA3006PI is no exception, offering superior performance in a wide range of operating conditions. Its robust design ensures long-term reliability, making it a preferred choice for engineers and designers looking to create efficient, high-performance power conversion systems.

For detailed specifications and application notes, or to request samples, please visit the official STMicroelectronics website or contact your local ST sales office.
