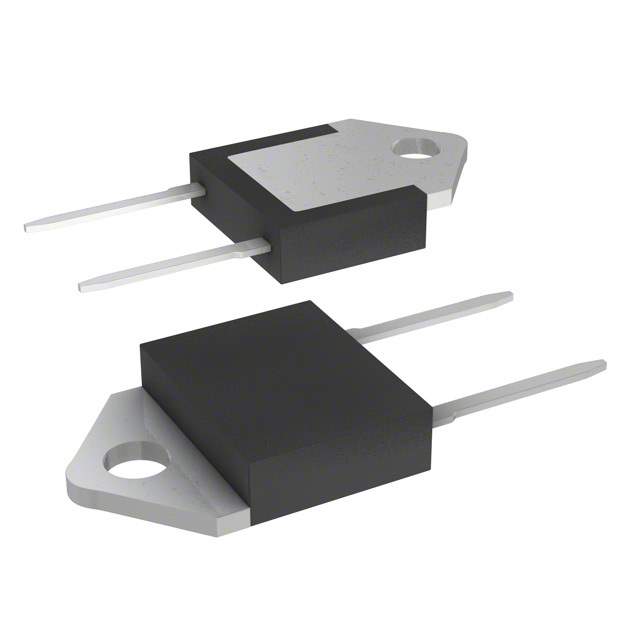

The STTH3002PI, from STMicroelectronics, is a state-of-the-art ultrafast diode engineered to deliver high performance and reliability. It is specifically designed to suit a range of demanding applications, including switch-mode power supplies, high-frequency rectification, and power factor correction circuits.
Key Features
- High Reverse Voltage Capability: With a reverse voltage of up to 200V, the STTH3002PI is well-suited for high-voltage applications.
- Ultrafast Switching: The diode boasts an exceptional reverse recovery time, reducing switching losses and improving efficiency.
- High Surge Current Capability: It is capable of handling high surge currents, ensuring robust performance during transient conditions.
- Low Forward Voltage Drop: The low forward voltage drop contributes to reduced power dissipation and improved efficiency.
Applications
The versatility of the STTH3002PI allows it to be used in a variety of applications, including:
- Switch-mode power supplies (SMPS)
- Power factor correction (PFC) circuits
- High-frequency inverters
- Freewheeling diodes in converters
- Snubber diodes
Product Specifications
Parameter
Value
Reverse Voltage (V<sub>R)
200V
Average Forward Current (I<sub>F(AV))
30A
Reverse Recovery Time (t<sub>rr)
Ultrafast
Package
ISOTOP
The STTH3002PI is available in the ISOTOP package, which is known for its high power dissipation and thermal efficiency, making it an ideal choice for compact and high-performance power applications.
With its combination of high efficiency, fast switching speed, and robustness, the STTH3002PI from STMicroelectronics is an excellent choice for designers looking to enhance the performance and reliability of their power management systems.
