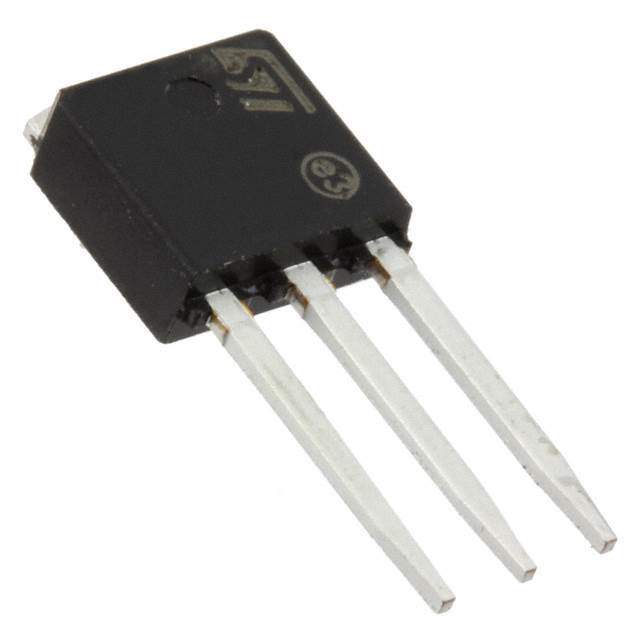

STU65N3LLH5 - N-Channel 30V - 0.0035 ohm - 65A STripFET™ H5 Power MOSFET

The STU65N3LLH5 is a high-performance N-Channel Power MOSFET brought to you by STMicroelectronics, a leader in semiconductor solutions. This Power MOSFET is a part of the STripFET™ H5 series, which is renowned for its low on-state resistance and high switching performance. Designed to address a wide range of power applications, the STU65N3LLH5 is a perfect choice for efficient power management tasks.

With a drain-source voltage (V<sub>DS) of 30V, the STU65N3LLH5 is well-suited for systems that require efficient voltage regulation within a moderate voltage range. It boasts an ultra-low on-resistance (R<sub>DS(on)) of just 0.0035 ohms, which minimizes conduction losses and enhances overall system efficiency. The low threshold voltage ensures that the MOSFET can be driven at low gate voltages, making it compatible with a variety of control circuits and reducing the need for complex gate drivers.

The device can handle a continuous drain current (I<sub>D) of up to 65A, making it capable of supporting high-current applications. Its high current capacity, combined with the low R<sub>DS(on), allows for improved power density and a reduction in heat generation, which is critical for maintaining the reliability and longevity of electronic systems.

The STU65N3LLH5 also features excellent switching performance, which is essential for reducing switching losses in applications such as DC/DC converters, motor control circuits, and power management systems. Fast switching speeds result in reduced transition losses and improved overall system performance.

STMicroelectronics has packaged the STU65N3LLH5 in a surface-mount PowerFLAT™ 5x6 package, which not only saves board space but also offers excellent thermal performance. The compact and efficient design of the STU65N3LLH5 makes it an ideal choice for space-constrained applications that require high power density and thermal efficiency.

In summary, the STU65N3LLH5 from STMicroelectronics is a robust and efficient N-Channel Power MOSFET that offers low on-resistance, high current handling, and fast switching speeds, all packed into a space-saving package. It is an excellent choice for designers looking to enhance power efficiency and reliability in their applications.
