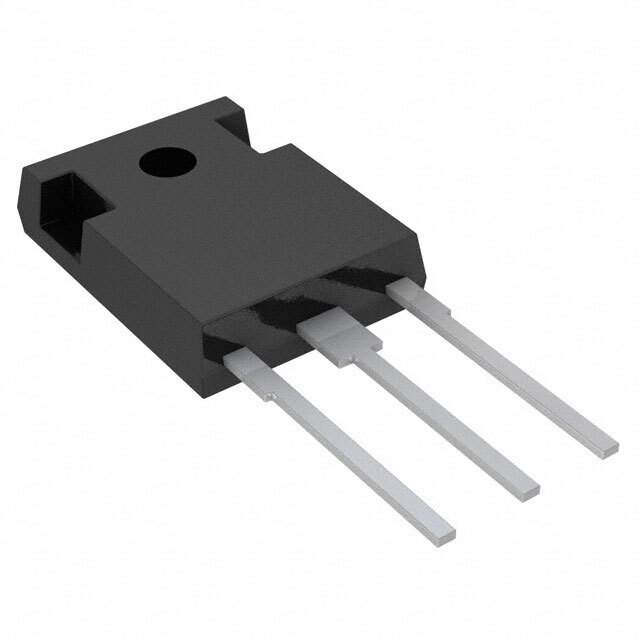

STW75N60DM6 - Power MOSFET from STMicroelectronics

The STW75N60DM6 is a state-of-the-art Power MOSFET brought to you by STMicroelectronics, a global semiconductor leader known for its innovative and reliable products. This particular MOSFET is part of the MDmesh™ DM6 series, which is renowned for its extremely low on-resistance and high dv/dt capability.

Key Features

• High Voltage Capability: The STW75N60DM6 has a drain-source voltage (V<sub>DS) of 600V, making it suitable for high voltage applications.
• Low On-Resistance: With an on-resistance (R<sub>DS(on)) as low as 0.029 Ohm, this MOSFET ensures high efficiency and minimal power loss during operation.
• High Current Rating: It can handle a continuous drain current (I<sub>D) of 75A, allowing it to manage significant power.
• Fast Switching: The device boasts a fast-switching speed, which is essential for reducing switching losses and improving performance in high-frequency circuits.
• Enhanced dv/dt Capability: Designed to withstand high dv/dt rates, the STW75N60DM6 is ideal for rugged applications.
• Reduced Gate Charge: A low gate charge (Q<sub>g) facilitates faster switching and reduces the energy required to drive the gate.

Applications

The STW75N60DM6 is versatile and can be used in a wide range of applications, including:

• Switch Mode Power Supplies (SMPS)
• LED Lighting
• Welding Equipment
• High-Frequency Converters
• Power Factor Correction Circuits
• Motor Drives and Inverters

Quality and Reliability

STMicroelectronics ensures that the STW75N60DM6 meets the highest quality and reliability standards. The device is subjected to rigorous testing and quality control measures, making it a trustworthy choice for critical and demanding power applications.

Environmental Compliance

The STW75N60DM6 is compliant with RoHS and Halogen-free requirements, reflecting STMicroelectronics' commitment to environmental sustainability.

Whether you're designing a power supply unit, an industrial motor drive, or any high-efficiency power management system, the STW75N60DM6 offers performance, reliability, and efficiency to meet your needs.
