Products specifications Report Issue?

Category Integrated Circuits (ICs)>Clock/Timing - Clock Generators, PLLs, Frequency Synthesizers
Mfr STMicroelectronics
Package Tape & Reel
PLL No
Input LVDS, LVPECL
Output Clock
Number of Circuits 1
Frequency - Max 6GHz
Divider/Multiplier Yes/Yes
Voltage - Supply 2.5V ~ 5.4V
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)

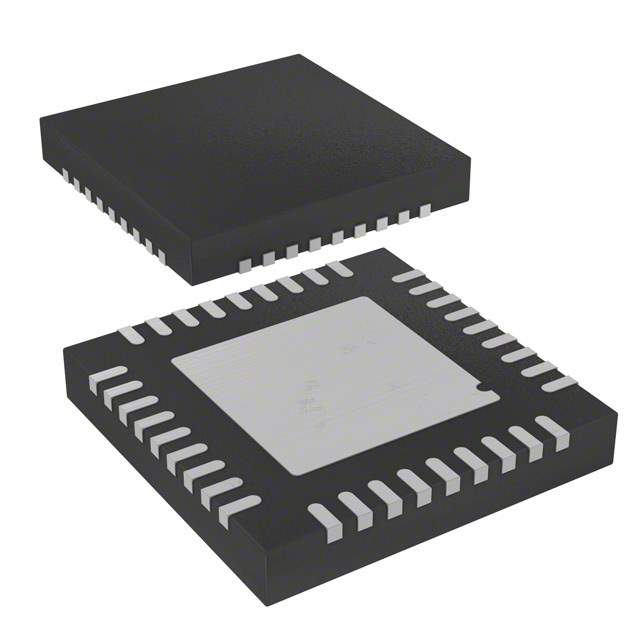

Package / Case 36-VFQFN Exposed Pad
Supplier Device Package 36-VFQFPN (6x6)
Base Product Number STW81200
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 497-18878-6,497-18878-2,497-18878-1,STW81200TR-ND
Standard Package 3,000
Win Source Part Number 1166859-STW81200TR
Ultra Librarian 3D Model Ultra Librarian STW81200TR CAD Model

Description

The STW81200TR from STMicroelectronics is a versatile and high-performance multi-band RF synthesizer that is designed to meet the demanding requirements of wireless communication systems. This integrated circuit is capable of generating accurate and stable frequencies that are required for various applications such as base stations, wireless infrastructure, test equipment, and private mobile radios.

Key Features

  • Wide Frequency Range: The STW81200TR offers a broad frequency range, making it suitable for multiple RF applications. It can generate frequencies from 46.875 MHz to 6 GHz, which covers most of the communication bands.
  • Dual Integer/Fractional-N PLLs: The device includes two independent Phase-Locked Loops (PLLs), which can be used either in integer or fractional-N mode, providing flexibility in frequency planning and channel spacing.
  • Low Phase Noise Performance: It delivers exceptional phase noise performance, which is crucial for high-quality signal generation and maintaining signal integrity in communication systems.
  • Programmable Output Power: The output power of the STW81200TR is programmable, allowing it to be optimized for specific system requirements.
  • Fast Locking Time: The synthesizer features a fast locking time, improving the system's response to frequency changes and enhancing overall performance.
  • Single 3.0 V to 3.6 V Supply: It operates on a single supply voltage, simplifying power management in system designs.
  • Serial Interface: The device can be programmed via a three-wire or four-wire serial interface, providing easy integration with microcontrollers or processors.

Applications

The STW81200TR is ideal for a wide range of applications, including but not limited to:

  • Wireless infrastructure (GSM, W-CDMA, LTE)
  • Instrumentation and test equipment
  • Private mobile radios
  • Software-defined radios
  • Satellite communications

With its advanced features and flexible design, the STW81200TR is a powerful solution for designers who require a reliable and high-quality RF synthesizer for their communication systems.
