Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Applications Audio, USB
Switch Circuit SPDT
Number of Channels 2
Max On Resistance 5 Ohm
Single Supply Voltage (V+) 2.7 V to 4.5 V
-3db Bandwidth 850MHz
Features USB 2.0
Temperature Range - Operating -40°C to 85°C (TA)

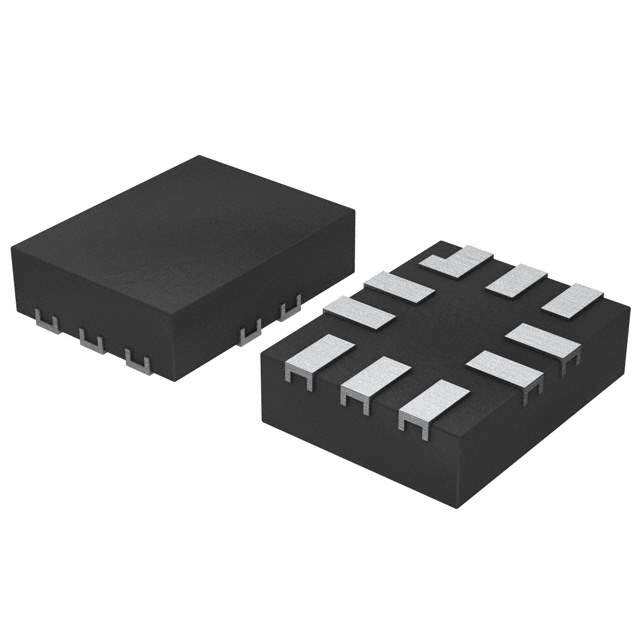

Case / Package 10-QFN (1.8x1.4)
Win Source Part Number 031189-STG3696EQTR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian STG3696EQTR CAD Model

Description

The STG3696EQTR from STMicroelectronics is a high-performance, dual single-pole double-throw (SPDT) analog switch IC designed to deliver a combination of low on-resistance and low off-leakage current. It is a versatile component suitable for a wide range of applications, including signal routing, data acquisition systems, and communication devices.

Key Features

  • Low On-Resistance: The device features a low on-resistance (typically around 0.37 ohms), which ensures minimal signal distortion and power loss when the switch is in the on state.
  • Wide Operating Voltage Range: It operates over a wide supply voltage range from 1.65V to 4.3V, making it compatible with various logic levels and accommodating a broad spectrum of applications.
  • High-Speed Switching: Fast switching speeds make the STG3696EQTR ideal for applications that require quick signal routing, such as multiplexing and demultiplexing signals.
  • Low Power Consumption: With its low power consumption, it helps to extend battery life in portable devices, making it an excellent choice for power-sensitive applications.
  • Break-Before-Make Switching: This feature prevents signal interference by ensuring that no two paths are connected simultaneously during the switching process.
  • ESD Protection: The device includes ESD protection circuitry, which guards against electrostatic discharges, enhancing the reliability and longevity of the product.

Applications

The STG3696EQTR is suitable for a variety of applications, including:

  • Audio and video signal routing
  • Data acquisition systems
  • Portable communication devices
  • Cellular phones
  • PDAs and other handheld devices
  • Computer peripherals

Product Packaging and Availability

The STG3696EQTR is available in a compact QFN-16 package, which is ideal for space-constrained applications. Its surface-mount design allows for efficient assembly in high-volume production. The product is supplied on tape and reel, facilitating automated pick-and-place manufacturing processes.

Conclusion

With its robust feature set and versatile application range, the STG3696EQTR from STMicroelectronics represents a reliable solution for designers looking to incorporate an efficient analog switch into their electronic systems. Its performance characteristics and packaging options make it a practical choice for both prototyping and mass production.
