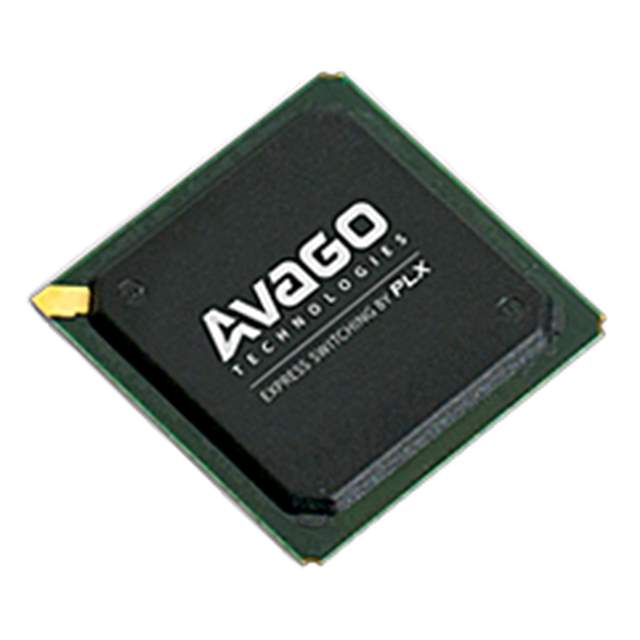

The PEX8615-BA50BC G is a PCIe switch from Broadcom Limited. This switch provides high-performance connectivity for various applications, including servers, storage systems, and embedded systems. It allows multiple devices to share a single PCIe link.

Applications:

• Servers: Expanding the number of PCIe slots in servers.
• Storage Systems: Connecting multiple storage devices to a host system.
• Embedded Systems: Providing PCIe connectivity in embedded applications.
• Industrial Automation: Connecting various industrial devices to a central controller.
• Networking Equipment: Enabling high-speed data transfer in networking applications.

Features:

• PCIe Gen2 Switch: Supports PCIe Gen2 speeds (5 GT/s).
• 16 Lanes: Provides 16 lanes for high-bandwidth connectivity.
• 5 Ports: Supports up to 5 downstream ports.
• Non-Transparent Bridging (NTB): Enables peer-to-peer communication between devices.
• Advanced Error Reporting: Provides detailed error information for diagnostics.

Benefits:

• High Performance: Enables high-speed data transfer.
• Scalability: Allows for expanding the number of PCIe devices in a system.
• Flexibility: Supports various configurations and applications.
• Reliability: Provides robust error handling and reporting.
• Easy Integration: Simplifies the design of PCIe-based systems.

Additional Details:

The PEX8615-BA50BC G operates with a core voltage of 1.0V and supports various PCIe features, including hot-plug and power management. Key specifications include the number of lanes, the number of ports, and the maximum data rate. The switch also includes features like Quality of Service (QoS) and traffic management to optimize performance. Detailed information about the device's electrical characteristics, timing characteristics, and configuration options can be found in the Broadcom datasheet.
