Products specifications Report Issue?

Category Discrete Semiconductor Products
Family Diodes,Rectifiers - Arrays
Manufacturer NXP
Win Source Part Number 231604-BAT54C
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name BAT54C
Introduction Date April 01, 1992
ECCN EAR99
Country of Origin China, Malaysia
Halogen Free Compliant
Estimated EOL Date 2023
Package Tape & Reel (TR);Tape & Reel (TR);Cut Tape (CT)
Product Status Obsolete
Diode Configuration 1 Pair Common Cathode
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) (per Diode) 200mA
Voltage - Forward (Vf) (Max) @ If 800mV @ 100mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 5ns
Current - Reverse Leakage @ Vr 2µA @ 25V
Operating Temperature - Junction -55°C ~ 150°C
Grade -
Mounting Type Surface Mount

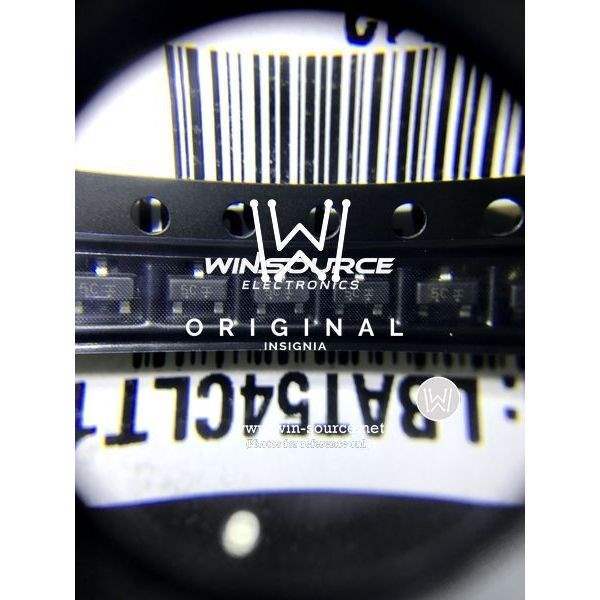

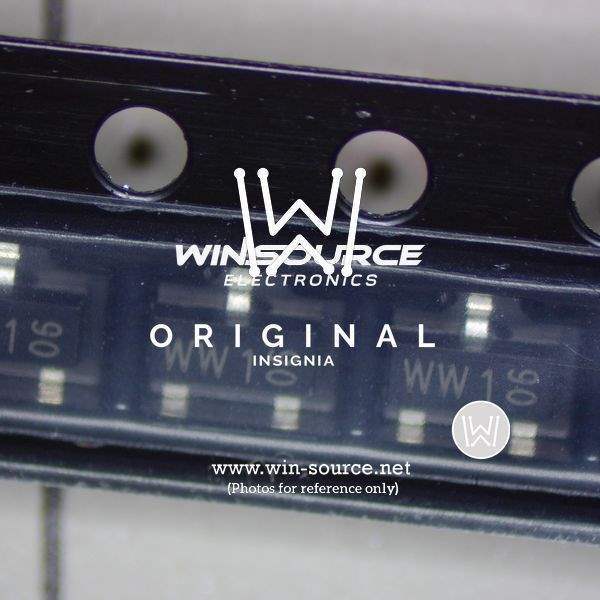

Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package SOT-23-3
Ultra Librarian 3D Model Ultra Librarian BAT54C CAD Model

Description

The BAT54C is a high-performance Schottky barrier diode from NXP Semiconductors, renowned for its low forward voltage drop and fast switching capabilities. This diode is designed for applications requiring efficient power management and high-speed switching. With its compact SOT-23 package, the BAT54C is ideal for space-constrained applications and is widely used in portable devices, power supply circuits, and various types of electronic equipment.

Key Features

  • Low Forward Voltage Drop: The BAT54C provides a low forward voltage drop, which results in reduced power loss and improved efficiency in applications.
  • Fast Switching Speed: This diode is capable of very fast switching operations, making it suitable for high-frequency applications.
  • Reverse Leakage Current: It has a very low reverse leakage current, which contributes to the overall energy efficiency of the circuit.
  • Series Configuration: The BAT54C consists of two diodes connected in series, offering designers flexibility in circuit implementation.
  • High Surge Current Capability: It can handle high surge currents, making it robust for applications that may experience transient overcurrent conditions.

Applications

  • DC/DC Converters
  • Power Management Functions
  • Reverse Polarity Protection
  • Switching Power Supplies
  • Charge Pump Circuits
  • Low Voltage Rectification
  • High-speed Data Lines Protection

Specifications

Parameter Value Package SOT-23 Configuration Series Max Forward Voltage 1V @ 10mA Max Reverse Current 2µA @ 25V Max Reverse Voltage 30V Operating Temperature Range -65°C to +125°C

With its outstanding performance and reliability, the NXP BAT54C Schottky barrier diode is an excellent choice for designers looking to optimize their power-sensitive and space-limited applications.
