Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation Boards - Audio Amplifiers
Mfr STMicroelectronics
Package Box
Product Status Obsolete
Amplifier Type Class D
Output Type 1-Channel (Mono)
Max Output Power x Channels @ Load 1.95W x 1 @ 4Ohm
Voltage - Supply 2.4V ~ 4.3V
Board Type Fully Populated
Utilized IC / Part TS4961
Supplied Contents Board(s)
Other Names 497-8932,-497-8932
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8471.41.0150
Win Source Part Number 1284342-STEVAL-CCA013V1
Ultra Librarian 3D Model Ultra Librarian STEVAL-CCA013V1 CAD Model

Description

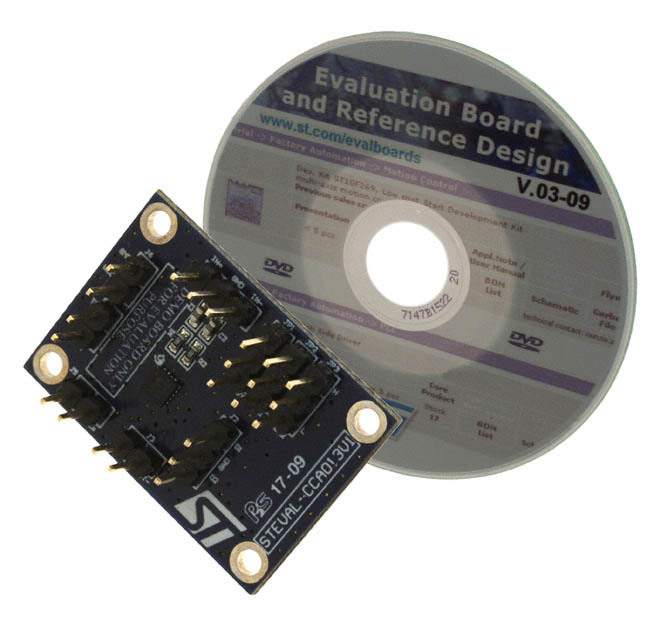

The STEVAL-CCA013V1 from STMicroelectronics is a state-of-the-art demonstration board designed specifically for audio applications. This evaluation tool showcases the performance of an advanced audio power amplifier, making it an ideal platform for developers and hobbyists alike to experiment with high-quality sound systems.

Key Features

  • High-Performance Audio Amplifier: At the heart of the STEVAL-CCA013V1 is a powerful audio amplifier capable of delivering exceptional sound quality, ensuring that your audio projects have the clarity and power they need.
  • Flexible Power Supply Options: The board can be powered through various means, providing flexibility for different usage scenarios and making it suitable for portable or stationary applications.
  • Compact Design: Its small footprint allows for easy integration into existing projects or systems, making it a versatile choice for a wide range of audio applications.
  • Easy Connectivity: With straightforward input and output connections, the STEVAL-CCA013V1 can be quickly and easily set up, allowing for rapid prototyping and testing.
  • Demonstration Ready: The board comes ready to demonstrate the capabilities of the audio amplifier, with minimal setup required, so you can focus on the development and fine-tuning of your audio solution.

Applications

The STEVAL-CCA013V1 is designed for use in a variety of audio applications, including but not limited to:

  • Home theater systems
  • Professional audio equipment
  • Portable audio devices
  • Active speaker systems
  • Automotive audio systems

Technical Specifications

For detailed technical specifications, it is recommended to refer to the official datasheet and user manual provided by STMicroelectronics. These documents offer comprehensive information on the electrical parameters, pin configurations, and operational guidelines necessary to fully utilize the capabilities of the STEVAL-CCA013V1 demonstration board.
