The STY105NM50N is a state-of-the-art N-channel Power MOSFET from STMicroelectronics, designed to deliver high efficiency and power density for a wide range of applications. This device is a testament to STMicroelectronics' commitment to providing advanced power solutions that meet the evolving needs of the electronics industry.

Key Features

• Low On-Resistance: The STY105NM50N features an exceptionally low on-resistance (R<sub>DS(on)), which minimizes conduction losses and enhances overall efficiency.
• High Current Capability: With a continuous drain current (I<sub>D) rating of 80A, this MOSFET can handle high current applications with ease, making it suitable for demanding power conversion tasks.
• High Voltage Rating: The 500V drain-to-source breakdown voltage (V<sub>DSS) allows for reliable operation in high voltage circuits, providing robust performance and protection against voltage spikes.
• Fast Switching Speed: The device's fast switching characteristics enable high-frequency operation, which is critical for applications such as switch-mode power supplies and DC-DC converters.

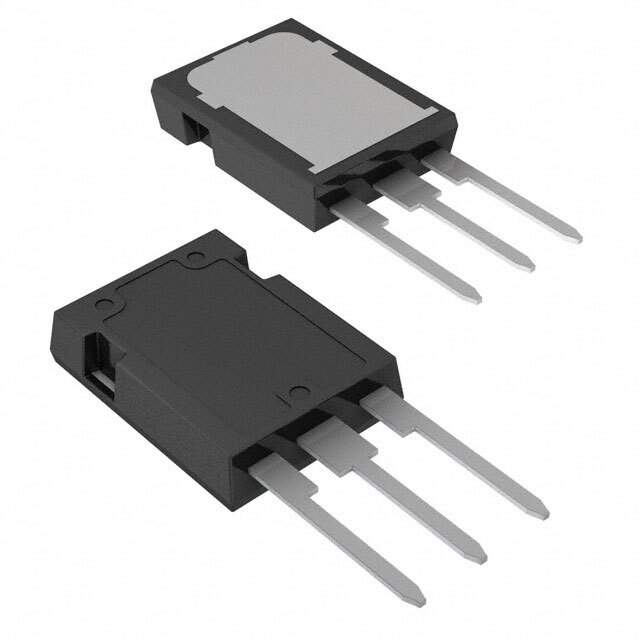

• Enhanced Thermal Performance: The STY105NM50N comes in a TO-247 package, known for excellent thermal characteristics, ensuring the device operates reliably even under high temperature conditions.

Applications

The versatile nature of the STY105NM50N makes it well-suited for a variety of applications, including:

• Switch-mode power supplies (SMPS)
• High-efficiency DC-DC converters
• Motor control systems
• LED lighting solutions
• Uninterruptible power supplies (UPS)

Product Reliability and Support

STMicroelectronics ensures that the STY105NM50N is manufactured to the highest standards, providing reliable and consistent performance. The device is supported by comprehensive technical documentation, including datasheets, application notes, and design guides, to assist engineers in integrating this MOSFET into their designs.

In summary, the STY105NM50N from STMicroelectronics is a robust and high-performance N-channel Power MOSFET that offers a blend of efficiency, power handling, and thermal performance, making it an excellent choice for designers looking to optimize their power management systems.
