Products specifications

Categories Discrete Semiconductor Products
Manufacturer STMicroelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Triac Type Alternistor - Snubberless
Voltage - Off State 800V
Current - On State (It (RMS)) (Max) 4A
Voltage - Gate Trigger (Vgt) (Max) 1.3V
Current - Non Rep. Surge 50, 60Hz (Itsm) 30A, 31A
Current - Gate Trigger (Igt) (Max) 35mA
Current - Hold (Ih) (Max) 35mA
Configuration Single
Temperature Range - Operating -40°C to 150°C (TJ)
Mounting Through Hole

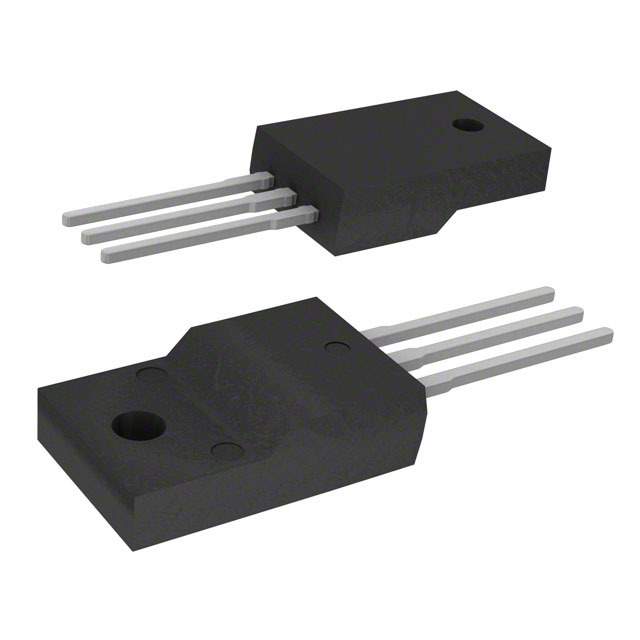

Case / Package ISOWATT220AB
Win Source Part Number 092725-T435-800W
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian T435-800W CAD Model

Description

The T435-800W is a high-performance triac manufactured by STMicroelectronics, designed to manage AC loads with a current of up to 4A. This triac is part of ST's Snubberless™ high-temperature series, which are specifically engineered to operate reliably in demanding temperature conditions.

Key Features

  • Current Rating: The T435-800W can handle continuous on-state currents up to 4A, making it suitable for a wide range of applications.
  • Voltage Capability: With an 800V blocking voltage capability, this triac is ideal for working with high-voltage AC power lines.
  • High-Temperature Performance: The device is designed to maintain its performance characteristics even at high temperatures, withstanding junction temperatures up to 150°C.
  • Snubberless™ Technology: ST's Snubberless™ technology allows for higher performance and reliability by reducing the need for external snubber circuits in inductive load applications.
  • Gate Trigger Current: A low gate trigger current (IGT) makes the T435-800W easy to drive with a wide range of gate drive circuits.
  • Package: Available in a TO-220AB package, it offers a compact form factor and straightforward mounting.

Applications

The T435-800W is versatile and can be used in a variety of applications, including:

  • Home appliances (e.g., washing machines, dishwashers, refrigerators)
  • Lighting systems (e.g., dimmers, halogen lamp controllers)
  • AC motor drives
  • Power tools
  • Industrial process control equipment
  • AC solid-state switches

Quality and Reliability

STMicroelectronics is known for its commitment to quality and reliability. The T435-800W triac is no exception and is manufactured to meet high standards, ensuring stable and reliable performance in a range of environmental conditions. It is RoHS compliant and adheres to international safety standards.

Conclusion

Overall, the T435-800W from STMicroelectronics is a robust and reliable component for controlling AC power in various applications. Its high-temperature capability, combined with Snubberless™ technology, makes it an excellent choice for designers looking for a triac with superior performance and ease of use.
