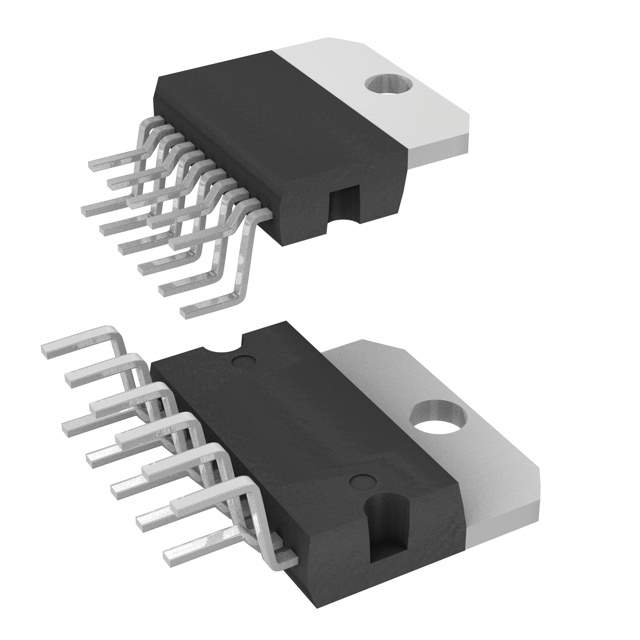

STMicroelectronics TDA2009 Audio Amplifier IC

The TDA2009 from STMicroelectronics is a monolithic integrated circuit designed for use as an audio class AB amplifier in hi-fi and high-quality audio applications. This versatile IC delivers an impressive performance in a compact form factor, making it an ideal solution for stereo and bridge amplifier configurations.

Key Features

• High Output Power: The TDA2009 can provide up to 10 + 10 W output power, ensuring robust sound output suitable for a range of audio applications.
• Wide Supply Voltage Range: Operating on a supply voltage range from 8V to 24V, the TDA2009 offers flexibility for various power supply designs.
• Low Distortion: With its low harmonic and crossover distortion, the TDA2009 ensures high-fidelity audio reproduction for an immersive listening experience.
• Thermal Overload Protection: The built-in thermal protection circuit prevents damage from overheating, thereby enhancing the longevity of the IC.
• Short Circuit Protection: The TDA2009 comes with a short circuit protection feature that safeguards the IC and the connected speakers from potential damage.

Applications

The TDA2009 is suitable for a wide range of audio applications, including:

• Hi-Fi audio systems
• Television and monitor audio amplification
• Portable and home speaker systems
• Active loudspeakers
• Car radio amplifiers

Technical Specifications

The TDA2009 boasts technical specifications that make it an excellent choice for audio amplification needs:

• Output Power: 10W per channel (stereo) or 20W (mono in bridge configuration)
• Load Impedance: Compatible with 4Ω to 16Ω speakers
• Frequency Response: Wide audio frequency range for full-spectrum sound
• Signal-to-Noise Ratio: Ensures clear audio output with minimal noise

The TDA2009's combination of high-quality audio performance, robust protection features, and a versatile supply voltage range make it a top choice for designers and hobbyists alike. Whether you're building or repairing audio equipment, the TDA2009 offers reliability and excellence in sound amplification.
