Products specifications

Categories RF/IF and RFID
Manufacturer STMicroelectronics
Packaging Tube
Part Status Obsolete(EOL)
Frequency 3.6kHz
Modulation or Protocol AM, FM
Applications Automotive Audio, Processing, Receivers
Current - Receiving 60mA
Data Interface PCB, Surface Mount
Antenna Connector PCB, Surface Mount
Operating Supply Voltage 7.5 V ~ 10 V
Operating Temperature Range -40°C ~ 85°C

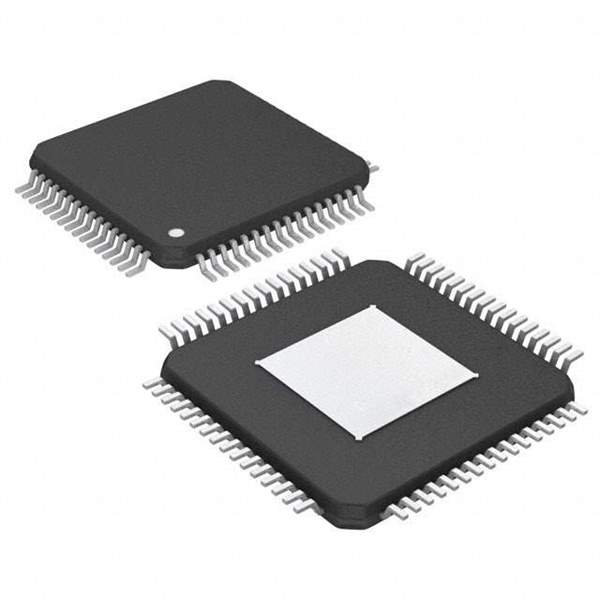

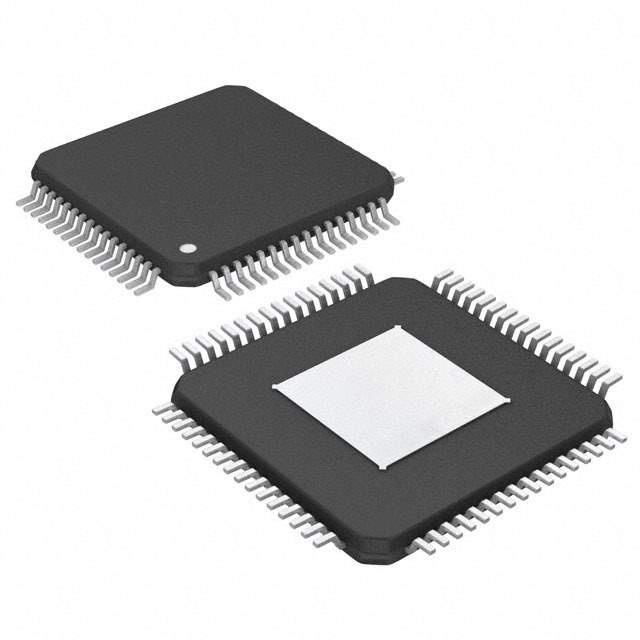

Package 64-LQFP
Manufacturer Package 64-TQFP (10x10)
Win Source Part Number 1266231-TDA7511
Manufacturer Homepage www.st.com
Popularity Medium
Supply and Demand Status Balance
Family Name TDA7511
Introduction Date November 01, 2001
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian TDA7511 CAD Model

Description

The TDA7511 is a state-of-the-art tuner integrated circuit (IC) developed by STMicroelectronics, a global semiconductor leader known for its innovative and reliable products. This high-performance tuner IC is designed to address the demanding requirements of car radio and multimedia systems, providing exceptional reception quality and robustness against interference.

Key Features

  • High Integration: The TDA7511 integrates a mixer, oscillator, and IF (Intermediate Frequency) counter on a single chip, reducing external component count and simplifying design.
  • Advanced Signal Processing: Equipped with advanced signal processing capabilities, it ensures clear and stable reception even in challenging conditions.
  • Wide Frequency Range: It supports a broad range of frequencies, making it suitable for FM, AM, and weather band reception.
  • Low Noise Figure: The low noise figure of the TDA7511 enhances sensitivity and improves the signal-to-noise ratio for a better listening experience.
  • Multiple Tuning Steps: It offers flexible tuning steps, facilitating precise station selection and compatibility with global broadcasting standards.

Applications

The TDA7511 is ideally suited for automotive entertainment systems, where reliable performance and high-quality audio reception are paramount. It can be used in:

  • Car radios
  • Navigation systems with radio functionality
  • Telematics devices
  • Multimedia receivers

Technical Specifications

With its advanced technical specifications, the TDA7511 is engineered to meet the rigorous demands of the automotive environment:

  • Supply voltage range: 7.0V to 8.5V
  • Operating temperature range: -40°C to 85°C
  • Package: LQFP64 (Low-profile Quad Flat Package, 64 pins)

In conclusion, the TDA7511 from STMicroelectronics represents a leap forward in tuner technology, offering unparalleled integration, performance, and flexibility for automotive radio and multimedia systems. Its robust design ensures reliable operation in the diverse and challenging automotive environment.
