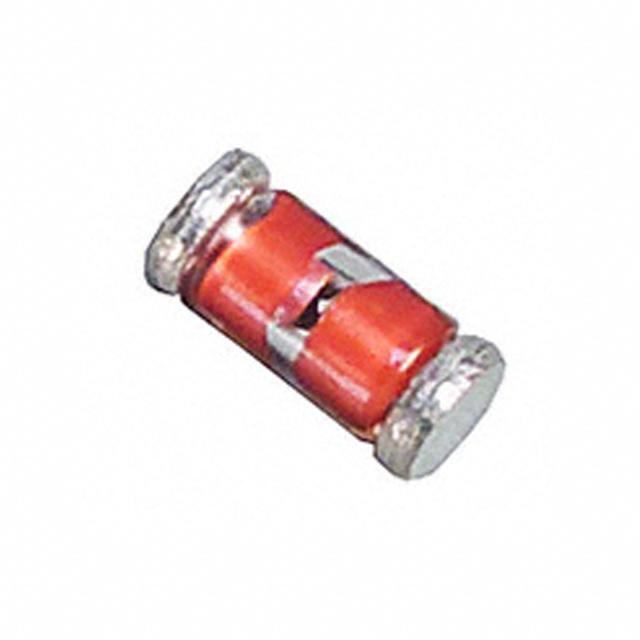

The TMMBAT42FILM from STMicroelectronics is a highly efficient, small signal Schottky diode, designed to meet the needs of a wide range of electronic applications. This diode is well-suited for situations where fast switching and low forward voltage drop are essential, making it an excellent choice for high-frequency inverters, DC-DC converters, and freewheeling diodes in various electronic circuits.

Key Features

• Low Forward Voltage Drop: This characteristic ensures that the diode operates efficiently, with minimal power loss during conduction, thereby enhancing overall circuit efficiency.
• Fast Switching Speed: The TMMBAT42FILM's quick response time makes it ideal for high-speed switching applications, where it can switch on and off rapidly without significant time delays.
• Surface-Mount Package: Enclosed in a compact SOD-123 flat package, the device is optimized for surface mounting, which saves valuable board space and is compatible with modern automated assembly processes.
• Low Leakage Current: Its low leakage current characteristic helps in reducing power consumption when the diode is in the reverse-biased state, contributing to the energy efficiency of the end application.
• High Reliability: STMicroelectronics is known for its commitment to quality, and the TMMBAT42FILM is no exception. It is designed to meet stringent reliability standards, ensuring a long operational lifespan.

Applications

The versatility of the TMMBAT42FILM allows it to be used in a variety of applications, including:

• Switching power supplies
• Power management systems
• High-frequency rectification
• Protection circuits
• Voltage clamping
• Reverse battery protection

With its combination of low forward voltage drop, fast switching speed, and small form factor, the STMicroelectronics TMMBAT42FILM Schottky diode is an excellent choice for designers looking to enhance the performance and efficiency of their electronic circuits.
