Products specifications

Categories Discrete Semiconductor Products
Manufacturer STMicroelectronics
Packaging Tube/Rail
Status Active
Triac Type Alternistor - Snubberless
Voltage - Off State 1200V (1.2kV)
Current - On State (It (RMS)) (Max) 40A
Voltage - Gate Trigger (Vgt) (Max) 1.5V
Current - Non Rep. Surge 50, 60Hz (Itsm) 350A, 370A
Current - Gate Trigger (Igt) (Max) 200mA
Current - Hold (Ih) (Max) 50mA
Configuration Single
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting Through Hole
Case / Package TOP3
Win Source Part Number 037376-TPDV1240RG
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TPDV1240RG CAD Model

Description

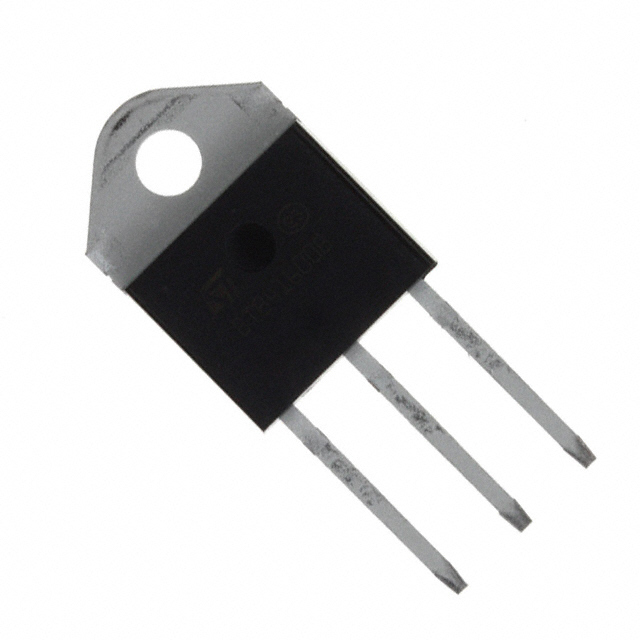

The TPDV1240RG is a high-performance Triac manufactured by STMicroelectronics, a global leader in semiconductor solutions. This device is specifically designed to control AC loads for industrial control systems and home appliances. With its robust design, the TPDV1240RG is an excellent choice for applications requiring high voltage and current handling capabilities.

Key Features

  • High Voltage Capability: The TPDV1240RG can handle voltages up to 1200V, making it suitable for a wide range of AC power applications.
  • High Current Rating: With a current rating of 40A, this Triac can control large power loads, ensuring reliable operation in demanding situations.
  • Gate Trigger Voltage: A low gate trigger voltage (VGT) ensures that the device can be easily driven by microcontrollers or other low-power gate trigger circuits.
  • Snubberless Technology: The TPDV1240RG incorporates ST's Snubberless technology, which enhances the device's commutation capabilities and reduces the need for external snubber circuits in most applications.
  • High Immunity to dV/dt: The device offers high immunity to rapid voltage changes, providing reliable performance in environments with electrical noise.
  • Thermal and Mechanical Resistance: Encased in a TO-220AB insulated package, the TPDV1240RG is designed to withstand high thermal and mechanical stress.

Applications

The TPDV1240RG is suitable for a variety of applications including, but not limited to:

  • Motor control circuits in power tools, kitchen appliances, and industrial machines.
  • Lighting systems, such as dimmers and switching for LED and conventional lighting.
  • Heating controls for HVAC systems and electric heaters.
  • Inductive load switching where high inrush currents are common.

Quality and Reliability

STMicroelectronics is committed to delivering high-quality products. The TPDV1240RG is no exception, and it is built to meet the stringent requirements of industrial-grade components. Users can expect a reliable performance over the device's lifespan, backed by ST's reputation for excellence in semiconductor manufacturing.
