Products specifications

Categories Integrated Circuits (ICs)
Manufacturer STMicroelectronics
Packaging Reel - TR
Applications Buffer
Output Type Rail-to-Rail
Number of Circuits 1
-3db Bandwidth 9.5MHz
Operating Supply Current 2mA
Output Current per Channel 75mA
Dual Supply Voltage (±) 2.25 V ~ 5 V
Mounting SMD

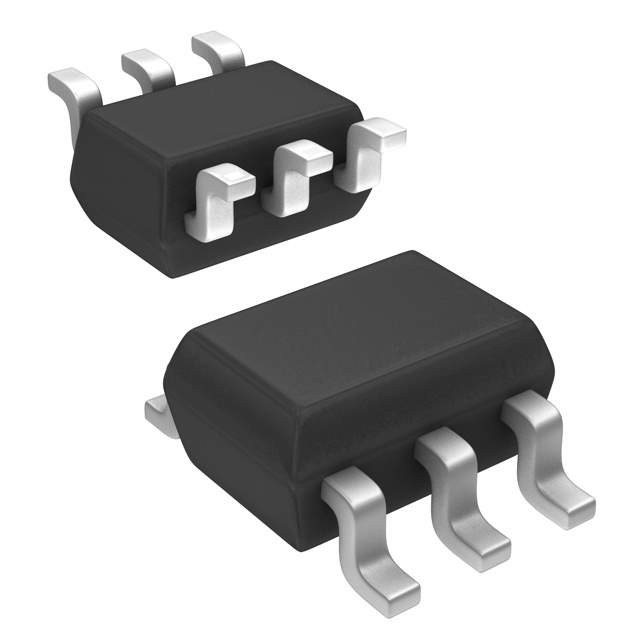

Package 6-TSSOP, SC-88, SOT-363
Manufacturer Package SC-70-6
Win Source Part Number 1274706-TSH122ICT
Manufacturer Homepage www.st.com
Popularity Medium
Supply and Demand Status Limited
Family Name TSH122
Introduction Date August 04, 2008
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian TSH122ICT CAD Model

Description

The TSH122ICT from STMicroelectronics is a high-performance voltage feedback amplifier that offers an optimal balance of features to support a wide range of applications. This integrated circuit is designed to provide excellent speed-to-power ratio, making it suitable for battery-powered devices, and portable applications, as well as for use in industrial, medical, and automotive systems where efficiency and reliability are critical.

Key Features

  • High Slew Rate: With a high slew rate, the TSH122ICT is capable of handling fast signal transitions, ensuring high-speed performance in demanding applications.
  • Low Power Consumption: The device is optimized for low power operation, which not only extends battery life in portable devices but also reduces power dissipation in all systems.
  • Wide Bandwidth: Offering a wide bandwidth, this amplifier is suitable for processing a broad range of frequencies, making it versatile for various signal amplification tasks.
  • Single Supply Operation: The TSH122ICT can operate from a single supply voltage, simplifying power supply design and saving space on the PCB.
  • Stable with Capacitive Loads: Its design ensures stability when driving capacitive loads, which is essential for maintaining signal integrity and system reliability.

Applications

The TSH122ICT is designed for use in a variety of applications, including:

  • Active filters
  • ADC buffer amplifiers
  • Signal conditioning
  • Portable and battery-powered equipment
  • Automotive electronics

Quality and Reliability

STMicroelectronics is known for its commitment to quality and reliability, and the TSH122ICT is no exception. It is built to meet the high standards expected of industrial-grade components, ensuring performance and durability across a range of environmental conditions.

Package and Availability

The TSH122ICT is available in a compact 5-pin SOT23 package, which is suitable for space-constrained applications. It is also RoHS compliant and is available for ordering in various quantities to meet the needs of both small-scale projects and large-volume production.

For detailed specifications, application notes, and further information, customers are encouraged to visit the STMicroelectronics website or contact their local sales office.
