Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer STMicroelectronics
Packaging Reel
Amplifier Type General Purpose
Slew Rate 1.1V/μs
Gain Bandwidth Product 900kHz
Current - Input Bias 1pA
Voltage - Input Offset 1mV
Supply Current 250μA
Current - Output / Channel 92mA
Supply Voltage , Single/Dual (±) 3V ~ 16V
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD
Manufacturer Package 8-TSSOP, 8-MSOP
Supplier Device Package 8-MiniSO
Family Part Number TSX562
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1274922-TSX562IST
Manufacturer Homepage www.st.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TSX562IST CAD Model

Description

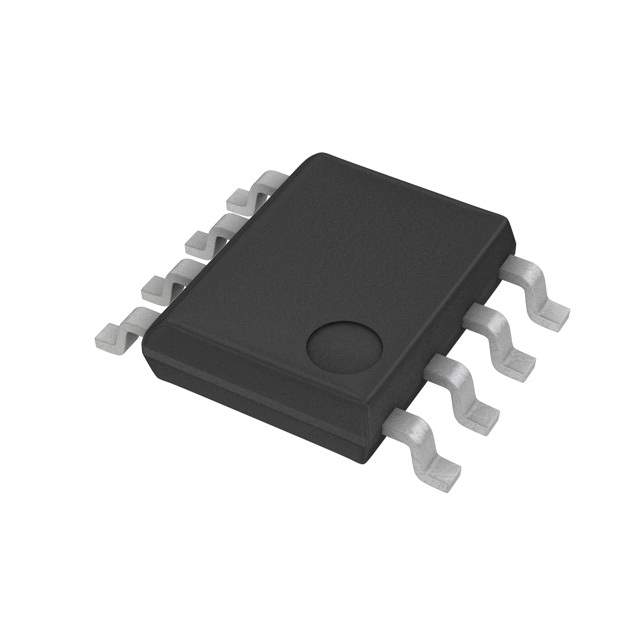

The TSX562IST is a cutting-edge operational amplifier (op-amp) from STMicroelectronics, designed to offer a perfect blend of performance and power efficiency. This device is part of ST's TSX56 series, which is renowned for its precision and stability across a wide range of operating conditions. The TSX562IST is particularly well-suited for applications requiring low input offset voltage and low power consumption.

Key Features

  • Low Power Consumption: With a typical quiescent current of only 220 µA, the TSX562IST is an ideal choice for battery-powered and energy-saving applications.
  • High Precision: It boasts an excellent input offset voltage of just 200 µV at 25°C, which minimizes errors in precision applications.
  • Wide Supply Voltage Range: The device can operate with a supply voltage ranging from 2.7V to 16V, providing flexibility for various circuit designs.
  • Extended Temperature Range: The operational temperature range from -40°C to 125°C ensures reliable performance in harsh environmental conditions.
  • Rail-to-Rail Output: The op-amp provides a rail-to-rail output swing, which maximizes the dynamic range within the given supply voltage.

Applications

The TSX562IST is versatile and can be employed in a multitude of applications, including:

  • Automotive and industrial electronics
  • Sensor interfaces and instrumentation
  • Analog filters and precision rectifiers
  • Battery-powered devices and power supply control
  • Audio and signal conditioning circuits

Quality and Reliability

STMicroelectronics is committed to delivering high-quality products. The TSX562IST has undergone rigorous testing and quality control measures to ensure it meets the industry standards for reliability and performance. It is provided in a small outline package (SO-8), which is suitable for space-constrained applications.

Conclusion

The TSX562IST from STMicroelectronics represents a reliable and efficient solution for designers looking to enhance the accuracy and power management of their electronic systems. Its low power consumption, high precision, and robust temperature performance make it an excellent choice for a wide range of applications.
