The UPSD3312DV-40T6 is a high-performance microcontroller produced by STMicroelectronics, designed for advanced embedded control applications. This microcontroller is part of the uPSD3300 series, which integrates a 8051-based core with a dual-bank Flash memory system, providing the flexibility and power needed for demanding applications.

At the heart of the UPSD3312DV-40T6 is a fast 8051-compatible microcontroller core, operating at up to 40 MHz. This core is capable of executing instructions much faster than the standard 8051 microcontroller, making it suitable for high-speed processing needs. The device features 288 KB of Flash memory, which is divided into two banks that enable users to program one bank while running application code from the other, thereby ensuring uninterrupted operation.

Key Features:

• Memory: The UPSD3312DV-40T6 boasts 288 KB of Flash memory and 16 KB of SRAM. The Flash memory is user-partitionable, allowing for a customized boot block, application code, and data storage configuration.
• Dual Data Pointers: To accelerate data movement, the device includes two data pointers that can be automatically incremented or decremented, which is particularly useful in buffer management.
• Flexible I/O: With up to 40 I/O lines, this microcontroller provides ample flexibility for interfacing with a wide range of peripherals and devices.
• Advanced Peripherals: The UPSD3312DV-40T6 comes with a comprehensive set of peripherals including a PWM unit, I²C-bus interface, SPI interface, and several general-purpose timers/counters.
• Power Management: A range of power-saving modes are available, enabling the reduction of power consumption during idle periods.
• Development Support: STMicroelectronics provides extensive development support for the UPSD3312DV-40T6, including development tools, application notes, and software libraries to streamline the design process.

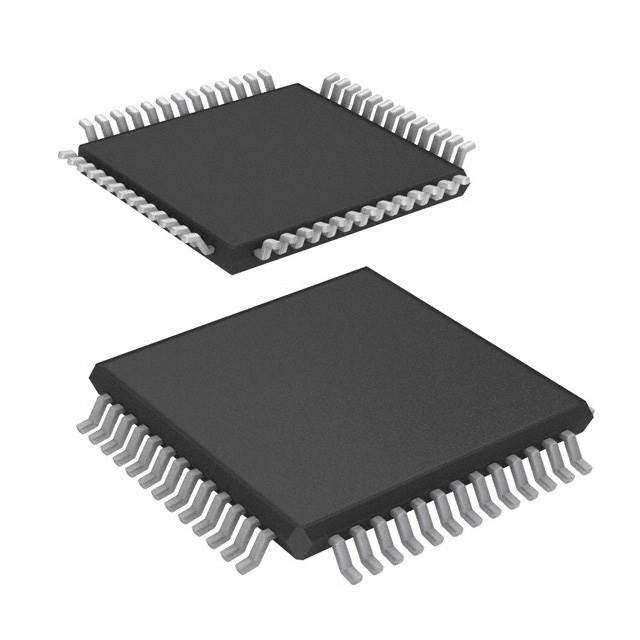

The UPSD3312DV-40T6 is packaged in a 52-pin PQFP (Plastic Quad Flat Pack), making it suitable for space-constrained applications. Its robust design and comprehensive feature set make it an ideal choice for industrial control, consumer electronics, automotive systems, and other embedded applications that require high-speed processing, flexible interfacing options, and reliable operation in demanding environments.
