The VN5E016AH-E from STMicroelectronics is a robust high-side driver designed to deliver outstanding performance in driving resistive, inductive, and capacitive loads. This versatile device is particularly suitable for automotive applications, where reliability and efficiency are paramount. With its advanced technology, the VN5E016AH-E ensures optimal control of load currents in a variety of challenging environments.

Key Features

• High-Side Switch: The VN5E016AH-E operates as a high-side switch, providing power to loads from a positive supply voltage. This configuration is ideal for driving loads that require a common ground.
• Current Control: The device includes an on-chip current sense feature that allows for precise control and monitoring of the load current, enhancing system reliability and performance.
• Thermal Shutdown: To prevent damage from overheating, the VN5E016AH-E is equipped with thermal shutdown protection, which automatically turns off the output if the junction temperature exceeds safe limits.
• Overvoltage Protection: The driver is designed to withstand load dump pulses, ensuring continued operation even under extreme voltage transients typically found in automotive environments.
• Wide Voltage Range: It supports a broad operating voltage range, accommodating various application requirements and ensuring flexibility in system design.

Applications

The VN5E016AH-E is particularly adept for use in the automotive industry, where it can be used to control a diverse array of actuators, lamps, and other high-current loads. Its robustness also makes it suitable for industrial applications, where reliable high-side switching is needed.

Package and Quality

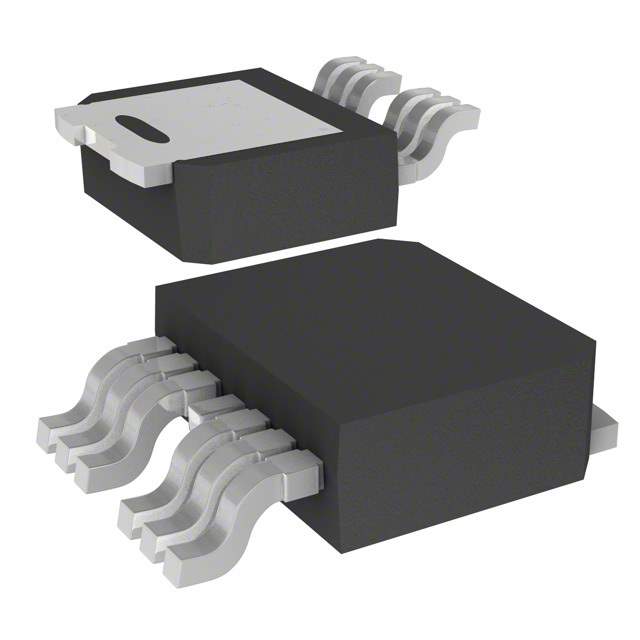

Encased in a compact and thermally efficient ECOPACK® package, the VN5E016AH-E meets environmentally friendly manufacturing standards. STMicroelectronics' commitment to quality ensures that the VN5E016AH-E meets stringent automotive qualification standards, including AEC-Q100 certification, providing designers with confidence in its performance and durability.
