Product Overview: VN808SR13TR from STMicroelectronics

The VN808SR13TR is a cutting-edge, high-side driver manufactured by STMicroelectronics, a global semiconductor leader known for its innovative and reliable products. This device is specifically designed to cater to the demanding requirements of automotive and industrial applications, providing a robust and efficient solution for driving inductive, resistive, or capacitive loads with a high degree of precision and control.

Key Features

• Multiple Channels: The VN808SR13TR features 8 high-side channels, which allows for the simultaneous control of multiple loads with a single chip, thus reducing the complexity and footprint of the circuit.
• High Current Rating: Each channel can handle a continuous current of up to 0.7A, making it suitable for a wide range of power applications.
• Integrated Protection: To ensure the longevity and reliability of the device, it comes with built-in protection features such as over-temperature shutdown, over-current shutdown, and load current limitation.
• Diagnostic Functions: The VN808SR13TR provides real-time diagnostic feedback that can help in the detection of faults such as open load in OFF state, short to Vcc, over-temperature, and loss of ground and Vcc.

Applications

With its robust design and versatile capabilities, the VN808SR13TR is ideal for a variety of applications, including but not limited to:

• Automotive lighting systems
• Body control modules
• Engine management systems
• Industrial automation systems

Technical Specifications

The VN808SR13TR operates over a wide supply voltage range from 5.5V to 36V, which is particularly suited for automotive environments where voltage transients may occur. The device is also designed to interface directly with microcontrollers via a standard SPI interface, simplifying the control and reducing the number of required I/O lines.

Package and Quality

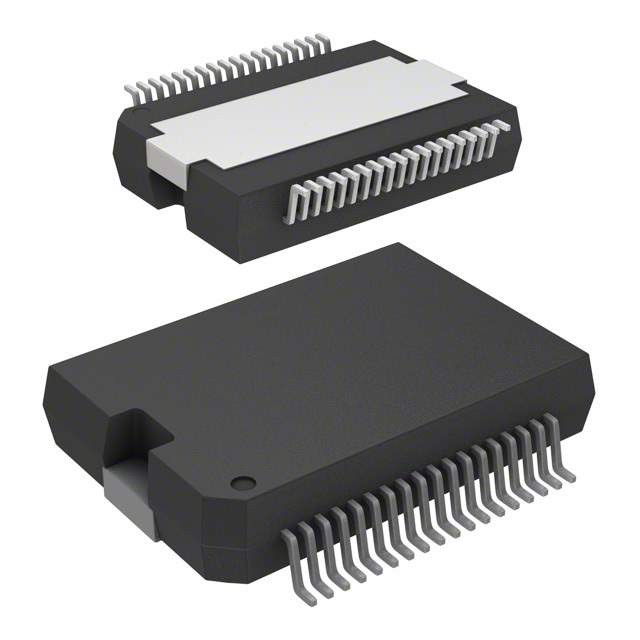

The VN808SR13TR comes in a compact and thermally efficient PowerSSO-24 package, which is designed to minimize PCB space and enhance thermal dissipation. This product is qualified under AEC-Q100 standards, ensuring high-quality performance in automotive conditions.

STMicroelectronics' commitment to excellence is evident in the VN808SR13TR, making it a smart choice for designers who require a reliable, high-performance high-side driver solution.
