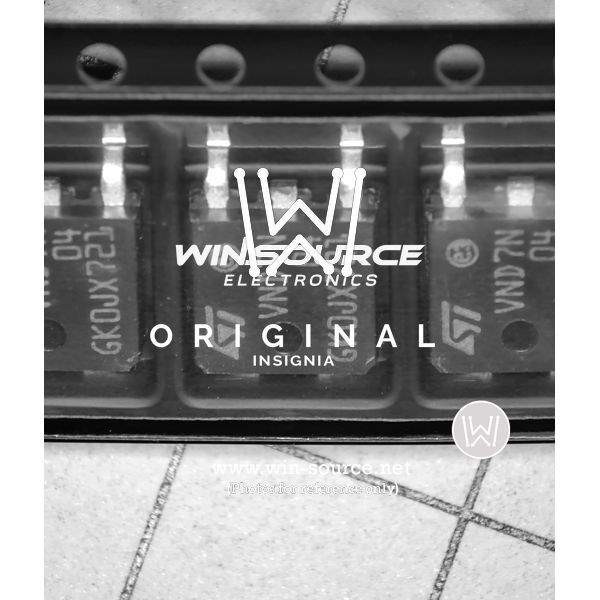

The VND7N04TR-E from STMicroelectronics is a high-performance, surface-mount, N-channel MOSFET designed for automotive and industrial applications. This power MOSFET is part of STMicroelectronics' OMNIFET II™ series, which is known for its robustness and efficiency in handling high current and power levels.

Key Features

• Device Type: N-channel MOSFET
• Package: DPAK (TO-252)
• Drain-source Voltage (V<sub>DS): 40V
• Continuous Drain Current (I<sub>D): 70A
• Power Dissipation (P<sub>D): 80W
• On-resistance (R<sub>DS(on)): 0.040 Ohm
• Operating Temperature Range: -55°C to 150°C
• Linear Current Limitation
• Thermal Shutdown
• Short-circuit Protection
• Overvoltage Clamp
• Low Current Drawn from Input Pin
• Diagnostic Feedback through Input Pin
• ESD Protection

Applications

The VND7N04TR-E is suitable for a variety of applications, particularly in the automotive sector where reliability and durability are critical. It is ideal for:

• Automotive Load Drivers
• DC Motor Control
• Power Management Systems
• LED Lighting Systems
• Relay and Solenoid Drivers

Quality and Reliability

STMicroelectronics ensures that the VND7N04TR-E MOSFET meets stringent quality and reliability standards, making it a trustworthy component for demanding applications. The device is compliant with automotive-grade quality standards, such as AEC-Q101, which guarantees performance in harsh environments.

Environmental Compliance

The VND7N04TR-E is also environmentally friendly, adhering to RoHS and REACH regulations, ensuring that it is free from hazardous substances and is safe for use in electronic equipment.
