STMicroelectronics VNH2SP30TR-E Motor Driver

The VNH2SP30TR-E from STMicroelectronics is a full-bridge motor driver that is designed for automotive and industrial applications. This high-power motor driver is capable of driving a large range of loads, including DC motors, and is suitable for other high-current applications. It is part of the VIPower M0-3 family and is known for its robustness and efficiency.

The VNH2SP30TR-E is equipped with a range of features that make it an excellent choice for demanding applications. It has an operational voltage range from 5.5V to 16V, which allows it to accommodate various power supply requirements. Additionally, the device can handle continuous current up to 30A, making it suitable for high-power motors. Its peak current handling capabilities go up to 160A (non-repetitive) for high-load conditions.

This motor driver integrates various protection features to ensure reliable operation under harsh conditions. These include overvoltage shutdown, undervoltage shutdown, overtemperature shutdown, and load dump protection. It also features current and power limitation to prevent damage to the motor or the driver itself. Diagnostics and status reporting are available through a dedicated output pin, which can be interfaced with a microcontroller for real-time monitoring.

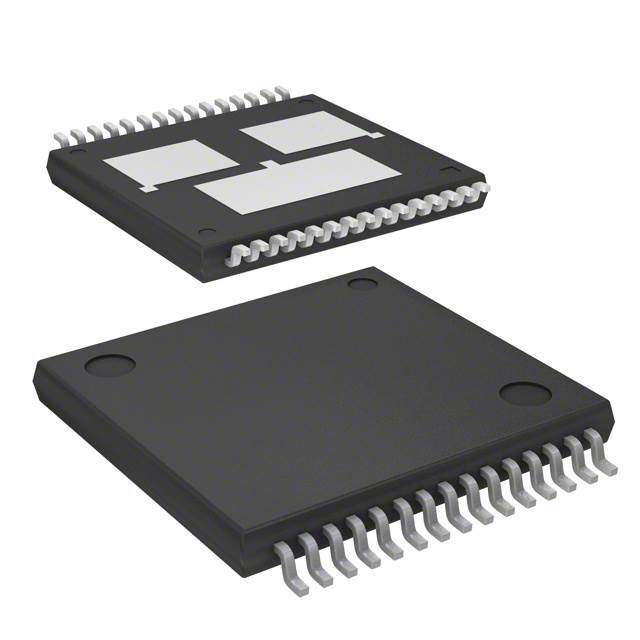

The VNH2SP30TR-E comes in a compact MultiPowerSO-30 package, which is designed to save space on the PCB while allowing for efficient heat dissipation. The device also includes an intrinsic diode for inductive load transient suppression, which is a critical feature for motor control applications.

In summary, the VNH2SP30TR-E from STMicroelectronics is a highly capable motor driver that offers a combination of high power, advanced protection features, and compact size. It is designed to meet the stringent requirements of automotive and industrial environments, ensuring reliable performance in a variety of applications where motor control with high current capability is essential.
