Products specifications

Categories Integrated Circuits
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Motor Type - AC, DC Brushed DC
Purpose Driver - Fully Integrated, Control and Power Stage
Technology Power MOSFET
Applications Automotive
Output Current 30A
Supply Voltage - Operating 5.5 V to 18 V
Voltage - Load 5.5 V to 18 V
Temperature Range - Operating -40°C to 150°C (TJ)
Mounting SMD (SMT)

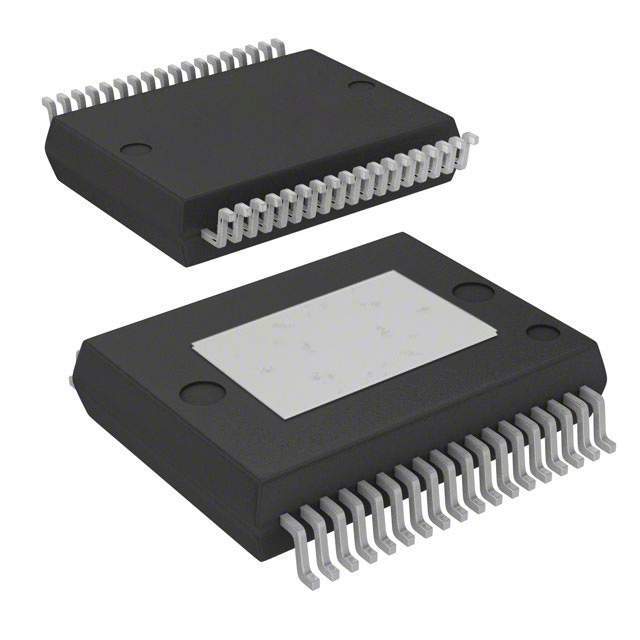

Case / Package PowerSSO-36
Win Source Part Number 398929-VNH5050A
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name VNH5050ATR-E
Introduction Date July 06, 2009
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian VNH5050ATR-E CAD Model

Description

The VNH5050ATR-E is a high-power, fully integrated H-bridge motor driver IC from STMicroelectronics, designed to drive a wide range of automotive applications. This robust and efficient component is capable of delivering a continuous current of up to 30A for driving one or two DC motors. With its advanced features and durable design, the VNH5050ATR-E is an ideal choice for applications that require reliable, high-current motor control.

Key Features

  • High Current Rating: Capable of driving high current loads up to 30A.
  • Double H-Bridge Configuration: Allows for control of two independent DC motors or one stepper motor.
  • Operational Voltage Range: Designed to operate within a voltage range of 5.5V to 36V, making it versatile for various automotive power systems.
  • Thermal Protection: Integrated over-temperature protection ensures reliable operation under challenging conditions.
  • Current and Voltage Sensing: Features current sensing and provides proportional analog voltage feedback of the motor current.
  • Diagnostic Functions: Offers diagnostic feedback for under-voltage, over-temperature, and power stage faults.

Applications

The VNH5050ATR-E is widely used in the automotive industry due to its robustness and capability to handle high currents. Typical applications include:

  • Automotive HVAC systems
  • Headlamp adjustment
  • Valve control
  • Small pumps and fans
  • Other automotive-related actuator controls

Reliability and Performance

STMicroelectronics has designed the VNH5050ATR-E with reliability in mind. It is built to withstand the harsh conditions of the automotive environment, including load dump and reverse battery protection. The device also features intrinsic demagnetization protection, and it is compliant with the most stringent automotive standards. Its power SO-30 package is optimized for thermal dissipation, ensuring performance stability across a wide range of operating temperatures.

Conclusion

With its high current handling capability, robust protection features, and versatile application range, the VNH5050ATR-E from STMicroelectronics stands out as a superior choice for automotive motor control solutions. Its advanced diagnostics and feedback capabilities allow for sophisticated control and monitoring, making it a reliable and efficient driver for high-performance automotive systems.
