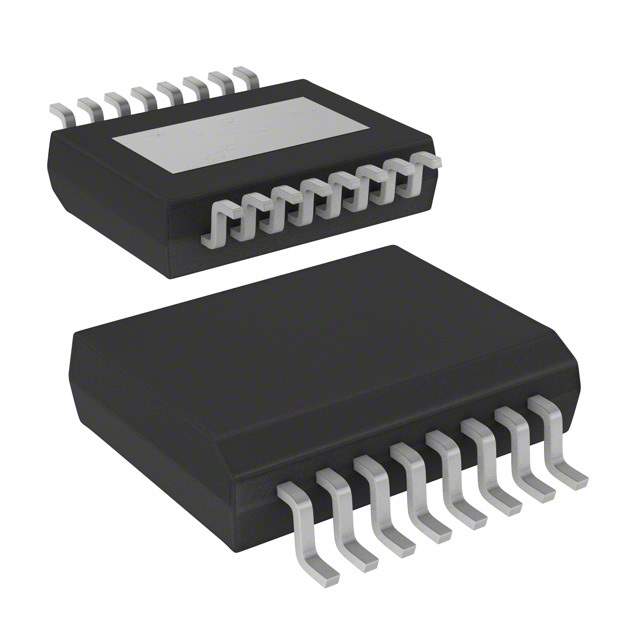

VNQ5E250AJ-E Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer STMicroelectronics
Series VIPower
Packaging Tube
Switch Type General
Number of Outputs 4
Output Configuration High Side
Output Type N-Channel
Interface On/Off
Voltage - Load 4 V ~ 28 V
Current - Output (Maximum) 3.5A
Rds On (Typ) 250 mOhm (Maximum)
Features Auto Restart
Fault Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Operating Temperature Range -40°C ~ 150°C (TJ)
Package 16-PowerFSOP (0.154", 3.90mm Width)
Manufacturer Package PowerSSO-16
Win Source Part Number 792778-VNQ5E250AJ-E
Popularity Medium
Supply and Demand Status Limited
Family Name VNQ5E250AJ
Introduction Date April 19, 2010
ECCN EAR99
Country of Origin Morocco
Halogen Free Not Compliant
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian VNQ5E250AJ-E CAD Model

Description

The STMicroelectronics VNQ5E250AJ-E is a VIPower IC in a 16-PowerFSOP package.

  • Outputs: Four High-Side N-Channel
  • Maximum Rds On: 250 mOhm
  • Features: Auto Restart, Fault Protection (Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage)
  • Operating Voltage: 4 V to 28 V
  • Maximum Output Current: 3.5A
  • Popularity: Popular
  • Supply and Demand Status: Limited
