Products specifications

Categories Discrete Semiconductor Products
Manufacturer STMicroelectronics
Packaging Tube/Rail
Status Active
Triac Type Logic - Sensitive Gate
Voltage - Off State 600V
Current - On State (It (RMS)) (Max) 4A
Voltage - Gate Trigger (Vgt) (Max) 1.3V
Current - Non Rep. Surge 50, 60Hz (Itsm) 20A, 21A
Current - Gate Trigger (Igt) (Max) 3mA
Current - Hold (Ih) (Max) 3mA
Configuration Single
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting Through Hole

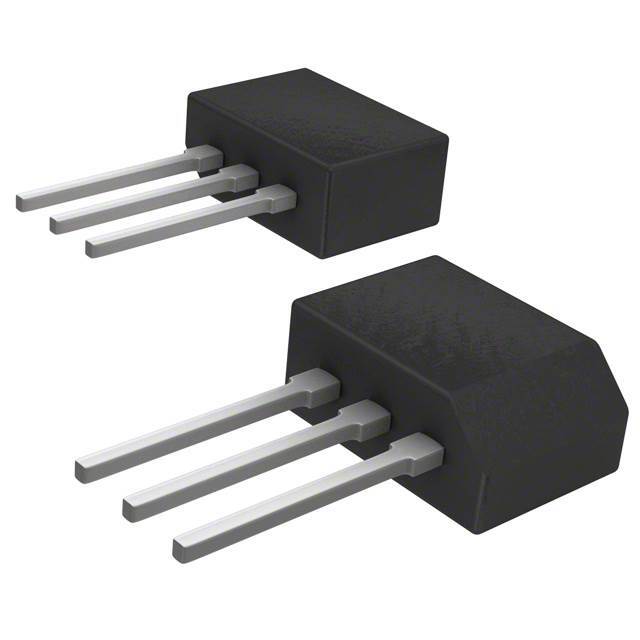

Case / Package TO-202-3
Win Source Part Number 037549-Z0402MF
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian Z0402MF CAD Model

Description

The Z0402MF is a robust triac from STMicroelectronics, designed to cater to a wide range of applications that require high bidirectional transient and blocking voltage capability. This triac is a member of ST's Snubberless™ series, which is known for its high commutation performance combined with full-rated current handling at high junction temperatures.

With a 600V blocking voltage and a 4A RMS on-state current, the Z0402MF is well-suited for the control of AC loads, offering a reliable solution for designers in the industrial, consumer, and home appliance markets. Its ability to handle moderate power makes it ideal for applications such as small motor control, lighting, and heating control, where efficient and silent operations are essential.

The Z0402MF features a sensitive gate, which allows it to be directly driven by microcontrollers and other low-power gate trigger circuits. This sensitivity ensures that the device can be triggered with very low gate currents, making it an energy-efficient choice for modern electronic designs. Additionally, the device is packaged in a TO-202-3, also known as TO-92, which is a compact and widely used package that allows for easy integration into various circuit layouts.

STMicroelectronics has engineered this triac with a focus on robustness and reliability. It has an extended operating junction temperature range from -40°C to +125°C, ensuring stable performance under a broad spectrum of environmental conditions. Moreover, the Z0402MF incorporates features that protect against over-temperature and over-current conditions, enhancing its durability and lifespan.

In summary, the Z0402MF triac is a versatile and efficient component, making it a preferred choice for designers looking to build reliable and compact power control systems. Its high commutation capabilities, sensitivity, and robustness make it an excellent choice for a wide array of AC power applications.
