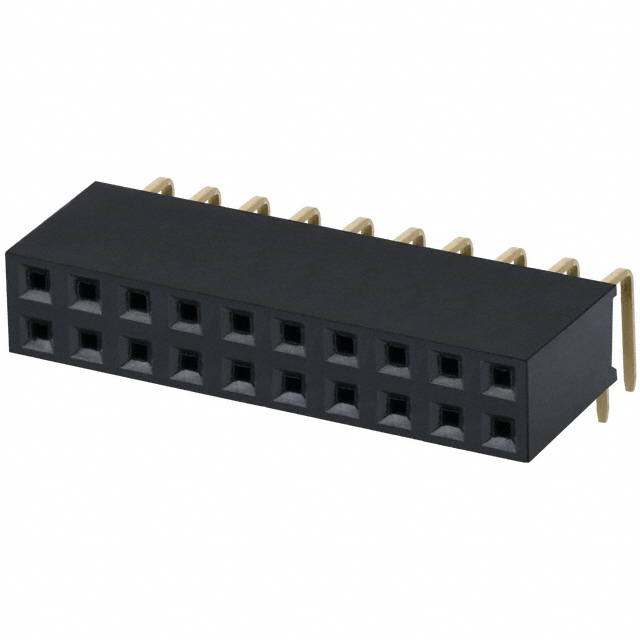

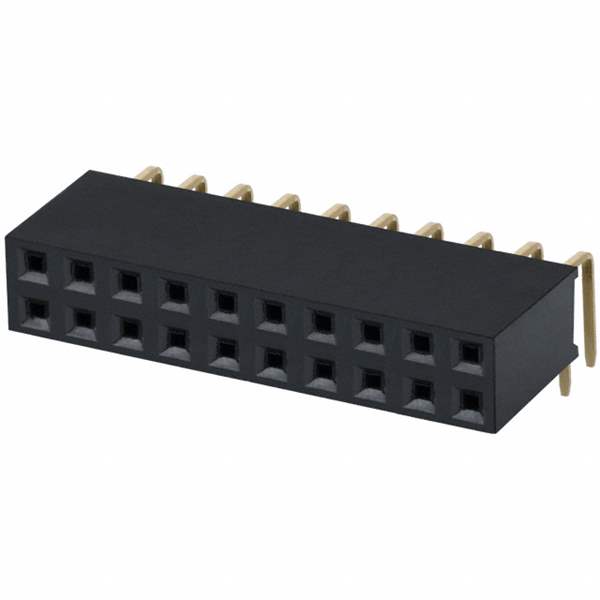

PPPC102LJBN-RC Sullins Connector Solutions – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PPPC102LJBN-RC

Part No PPPC102LJBN-RC
Manufacturer Sullins Connector Solutions
Catalog Rectangular Connectors - Headers, Receptacles, Female Sockets
Description CONN HDR 20POS 0.1 GOLD PCB R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, InterconnectsRectangular ConnectorsHeaders, Receptacles, Female Sockets
Mfr Sullins Connector Solutions
Packaging Tray
Part Status Active
Connector Type Header
Contact Type Female Socket
Style Board to Board
Number of Positions 20
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating Flash
Insulation Color Black
Insulation Height 0.200" (5.08mm)
Contact Length - Post 0.124" (3.15mm)
Operating Temperature -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Gold
Current Rating (Amps) 3A
Voltage Rating 250V
Insulation Material Polyester
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post Flash
Base Product Number PPPC102
Ultra Librarian 3D Model Ultra Librarian PPPC102LJBN-RC CAD Model
