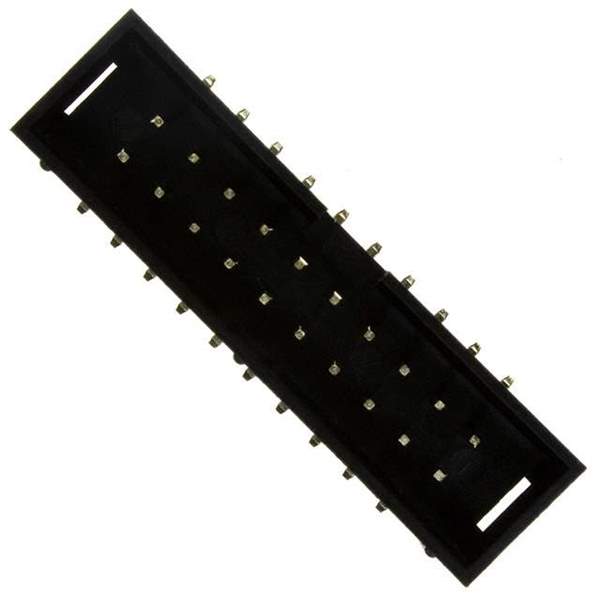

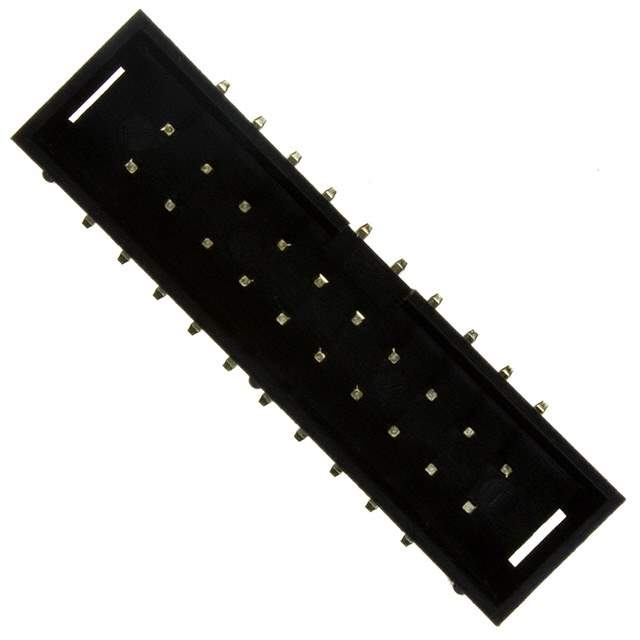

SBH11-NBPC-D10-SM-BK

Name: SBH11-NBPC-D10-SM-BK
Brand: Sullins Connector Solutions
SKU: 1350163
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SBH11-NBPC-D10-SM-BK
Manufacturer	Sullins Connector Solutions
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 20POS 2.54MM / Connector Header Surface Mount 20 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Sullins Connector Solutions
Series	SBH11
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	20
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Insulation Height	0.358" (9.10mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish - Post	Gold
Contact Material	Brass
Insulation Material	Polyamide (PA) , Nylon
Features	Keying Slot
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Mated Stacking Heights	11.17mm, 12.72mm, 14.87mm, 19.87mm
Contact Finish Thickness - Post	Flash
Base Product Number	SBH11
Standard Package	18
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1350163-SBH11-NBPC-D10-SM-BK
Ultra Librarian 3D Model	Ultra Librarian SBH11-NBPC-D10-SM-BK CAD Model

Alternative Products

Description

The Sullins Connector Solutions SBH11-NBPC-D10-SM-BK is a rectangular connector header with male pins that is suitable for various electronic applications.

Mounting Type: Surface Mount
Shrouded: Yes, with four walls
Style: Board to Board or Cable
Temperature Range: -40°C to 105°C
Current Rating: 3A
