Same model may have multiple batches, images only for reference.

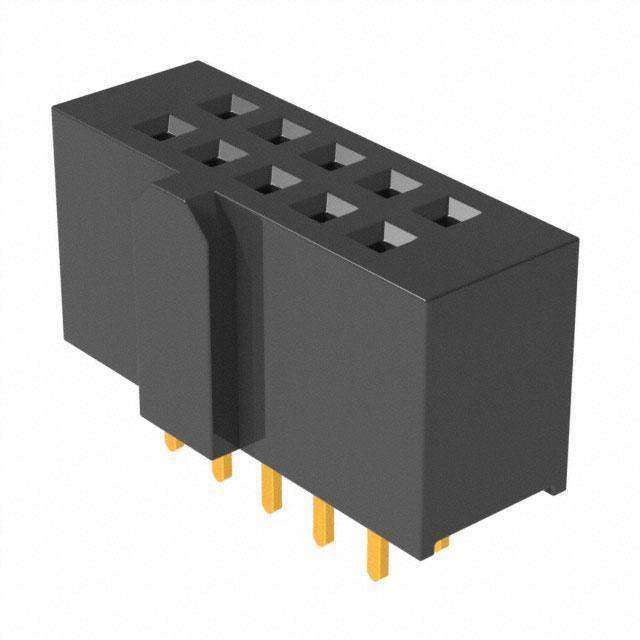

SFH11-PBPC-D05-ST-BK

Name: SFH11-PBPC-D05-ST-BK
Brand: Sullins Connector Solutions
SKU: WS1201174
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SFH11-PBPC-D05-ST-BK
Manufacturer	Sullins Connector Solutions
Catalog	Rectangular Connectors
Description	CONN HDR 10POS 0.1 GOLD PCB
Datasheet	SFH11-PBPC-D05-ST-BK Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Win Source Part Number	WS1201174-SFH11-PBPC-D05-ST-BK
Manufacturer	Sullins Connector Solutions
Category	Connectors, Interconnects -Rectangular Connectors -Headers, Receptacles, Female Sockets
Series	SFH11
Package	Tray
Product Status	Active
Connector Type	Header
Contact Type	Female Socket
Style	Board to Board
Number of Positions	10
Pitch - Mating	0.100" (2.54mm)
Ultra Librarian 3D Model	Ultra Librarian SFH11-PBPC-D05-ST-BK CAD Model

Alternative Products

Description

The SFH11 series header connector, manufactured by Sullins Connector Solutions, is a board-to-board connector with 10 positions.

Application: Board-to-Board
Positions: 10
Pitch: 0.100" (2.54mm)
Contact Gender: Female
Contact Type: Socket
Mounting Type: Surface Mount
Packaging: Tray
Series: SFH11
Product Status: Active
