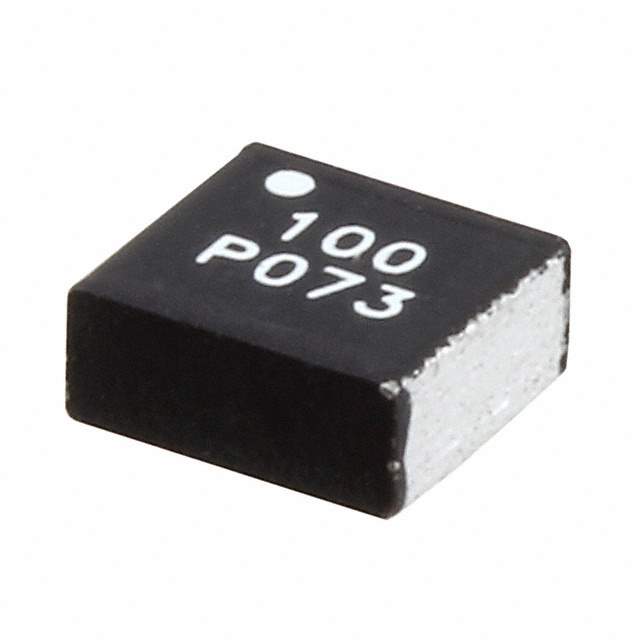

Same model may have multiple batches, images only for reference.
0420CDMCBDS-2R2MC Real Image
Same model may have multiple batches, images only for reference.

0420CDMCBDS-2R2MC

Part No 0420CDMCBDS-2R2MC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 2.2UH 4.5A 35 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Sumida America Components Inc.
Packaging Reel
Part Status Obsolete (End Of Life)
Type Wirewound
Inductance 2.2μH
Tolerance ±20%
Current Rating (Amps) 3.9A
Current - Saturation 4.5A
Shielding Shielded
DC Resistance (DCR) 35mOhm
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package 2-SMD
Supplier Device Package SMD
Dimension 0.177" L x 0.161" W (4.50mm x 4.10mm)
Height - Seated (Maximum) 0.079" (2.00mm)
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803759-0420CDMCBDS-2R2MC
Ultra Librarian 3D Model Ultra Librarian 0420CDMCBDS-2R2MC CAD Model

Description

The Sumida America Components Inc. electronic component is a wirewound type product that is shielded and has an inductance of 2.2μH.

  • Inductance: 2.2μH
  • Tolerance: ±20%
  • Current Saturation: 4.5A
  • Status: Obsolete (end of life)
  • DC Resistance (DCR): 35mOhm
  • Packaging: Reel
  • Mounting Style: SMD
  • Dimensions: 0.177" L x 0.161" W (4.50mm x 4.10mm)
  • Manufacturer Package: 2-SMD
  • Height: 0.079" (2.00mm)
  • Supplier Device Package: SMD
  • Temperature Range: -40°C ~ 105°C
