Same model may have multiple batches, images only for reference.

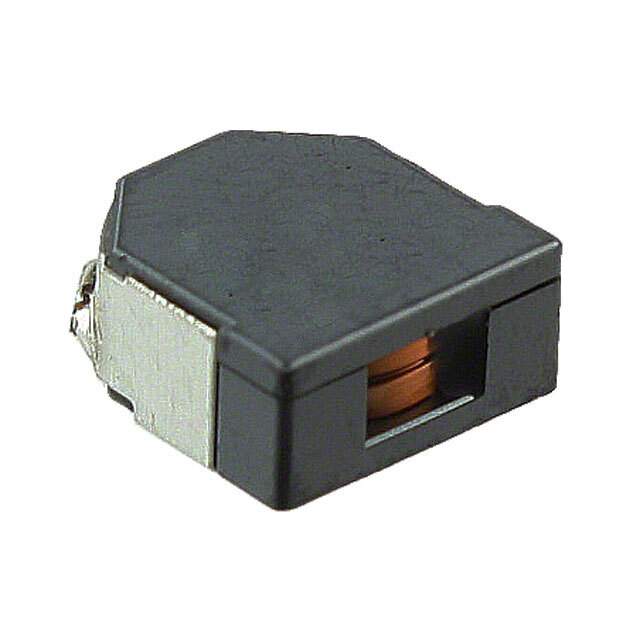

CDEIR8D38FNP-220NC Real Image
Same model may have multiple batches, images only for reference.

CDEIR8D38FNP-220NC

Part No CDEIR8D38FNP-220NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 22UH 2.2A 88.3 MOHM
Datasheet
CDEIR8D38FNP-220NC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Status Active
Material - Core Ferrite
Inductance 22μH
Tolerance ±30%
Current Rating 2.2A
Current - Saturation 3A
DC Resistance (DCR) 88.3 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.157" (4.00mm)
Win Source Part Number 050198-CDEIR8D38FNP-220NC
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CDEIR8D38FNP-220NC CAD Model

Description

CDEIR8D38FNP-220NC Description

The CDEIR8D38FNP-220NC is a high-performance inductor that offers excellent current handling capabilities and low losses in a compact size. It's designed to enhance efficiency and thermal characteristics in power management applications.

  • Applications:
    • DC-DC Converters
    • Power Supply Modules
    • Voltage Regulators
    • Communications Equipment
  • Features and Benefits:
    • High Saturation Current: Supports higher current levels without compromising inductance.
    • Low DCR: Minimizes power losses, improving efficiency.
    • Compact Design: Fits in limited spaces while maintaining performance.
  • Additional Details:
    • Inductance: 22μH
    • Saturation Current: High, suitable for demanding applications.
