Same model may have multiple batches, images only for reference.

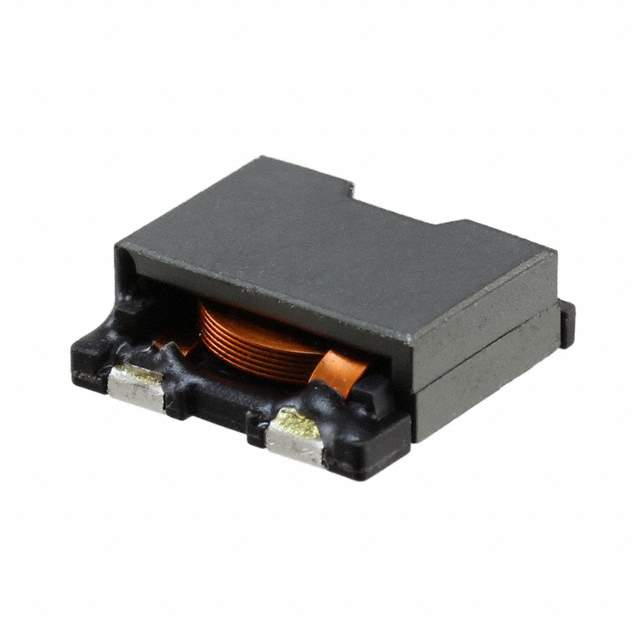

CDEP134NP-3R6MC-H Real Image
Same model may have multiple batches, images only for reference.

CDEP134NP-3R6MC-H

Part No CDEP134NP-3R6MC-H
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 3.6UH 7.5A 12 MOHM SMD / 3.6 µH Shielded Drum Core, Wirewound Inductor 7.5 A 12mOhm Max Nonstandard
Datasheet
CDEP134NP-3R6MC-H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Sumida America Components Inc.
Series CDEP134
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 3.6 µH
Tolerance ±20%
Current Rating (Amps) 7.5 A
Current - Saturation (Isat) 12.5A
Shielding Shielded
DC Resistance (DCR) 12mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.531" L x 0.531" W (13.50mm x 13.50mm)
Height - Seated (Max) 0.197" (5.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names 308-1419-1,Q2592264,CDEP134NP-3R6MC-H-ND,308-1419-2,308-1419-6,CDEP134NP3R6MCH
Standard Package 500
Win Source Part Number 1164500-CDEP134NP-3R6MC-H
Ultra Librarian 3D Model Ultra Librarian CDEP134NP-3R6MC-H CAD Model

Description

The CDEP134NP-3R6MC-H from Sumida America Components Inc. is a fixed inductor with a drum core and wirewound type.

  • Core Type: Drum core
  • Type: Wirewound
  • Shielded: Shielded
  • Core Material: Ferrite
  • Inductance: 3.6μH
  • Tolerance: ±20%
  • DC Resistance: 12mOhm max
  • Saturation Current Rating: 12.5A
  • Mounting: SMD (SMT)
  • Packaging: Tape and reel
  • Operating Temperature Range: -40℃ to 125℃
  • Status: Active
