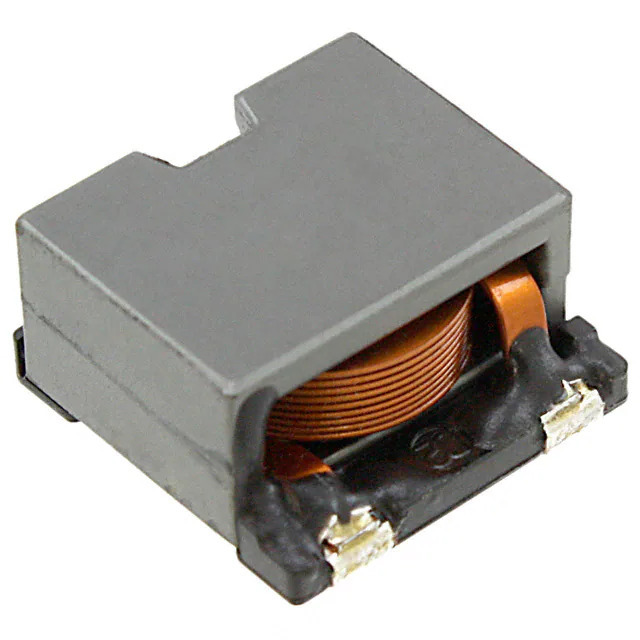

CDEP147NP-6R1MC-95 Sumida America Components Inc.
Same model may have multiple batches, images only for reference.

CDEP147NP-6R1MC-95

Part No CDEP147NP-6R1MC-95
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 6.1UH 11A 7.8 MOHM SMD
Datasheet
CDEP147NP-6R1MC-95 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Sumida America Components Inc.
Series CDEP147
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 6.1 µH
Tolerance ±20%
Current Rating (Amps) 11 A
Current - Saturation (Isat) 14.8A
Shielding Shielded
DC Resistance (DCR) 7.8mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.571" L x 0.571" W (14.50mm x 14.50mm)
Height - Seated (Max) 0.315" (8.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1370562-CDEP147NP-6R1MC-95
Ultra Librarian 3D Model Ultra Librarian CDEP147NP-6R1MC-95 CAD Model

Description

The CDEP147NP-6R1MC-95 is a drum core, wirewound inductor manufactured by Sumida America Components Inc.. It is a part of the CDEP147 series and is packaged in tape and reel.

  • Package/Case: Nonstandard
  • Mounting Type: Surface Mount
  • Temperature Range: -40°C to 125°C
  • Inductance: 6.1 μH
  • Current Rating: 11 A
  • Shielding: Shielded
  • DC Resistance (DCR): 7.8 mOhm max
  • Size: 0.571" L x 0.571" W (14.50mm x 14.50mm)
  • Height: 0.315" (8.00mm)
  • Product Status: Active
  • MSL Level: Unlimited
  • Core Material: Ferrite
