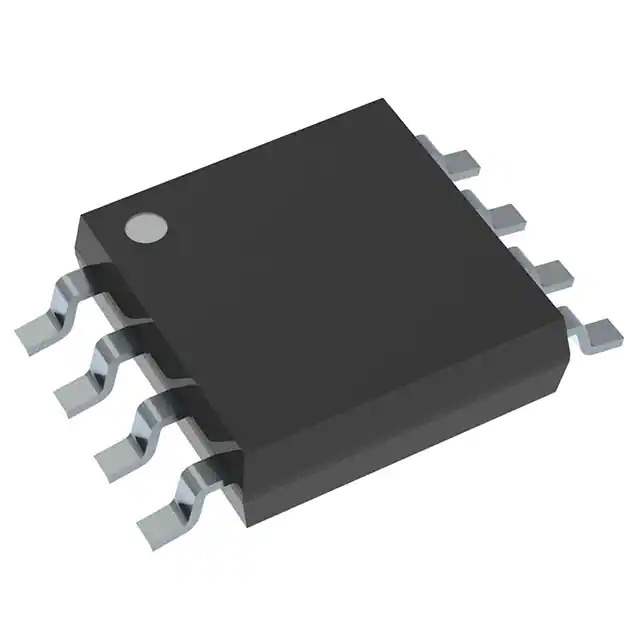

NJM5534MD Real Image
Same model may have multiple batches, images only for reference.

NJM5534MD

Part No NJM5534MD
Manufacturer Nisshinbo Micro Devices Inc.
Catalog Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description IC OPAMP GP 1 CIRCUIT 8DMP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Mfr Nisshinbo Micro Devices Inc.
Package Tube
Product Status Obsolete
Amplifier Type General Purpose
Number of Circuits 1
Slew Rate 13V/µs
Gain Bandwidth Product 10 MHz
Current - Input Bias 500 nA
Voltage - Input Offset 500 µV
Current - Supply 4mA
Voltage - Supply Span (Min) 6 V
Voltage - Supply Span (Max) 44 V
Temperature Range - Operating -20°C ~ 75°C
Mounting Type Surface Mount
Package / Case 8-SOIC (0.197", 5.00mm Width)
Supplier Device Package 8-DMP
Standard Package 100 pcs
ECCN OBSOLETE
Win Source Part Number 255736-NJM5534MD
Ultra Librarian 3D Model Ultra Librarian NJM5534MD CAD Model

Description

The NJM5534MD is a general-purpose amplifier integrated circuit that is commonly used in instrumentation, OP amps, and buffer amp applications.

  • Circuit Design: single circuit
  • Package: 8-SOIC package
  • Mounting: surface mount applications
  • Slew Rate: 13V/µs
  • Gain Bandwidth Product: 10 MHz
  • Input Bias Current: 500 nA
  • Voltage Input Offset: 500 µV
  • Supply Current: 4mA
  • Operating Temperature Range: -20°C to 75°C
  • Product Status: obsolete
  • Voltage Supply Range: 6V to 44V
