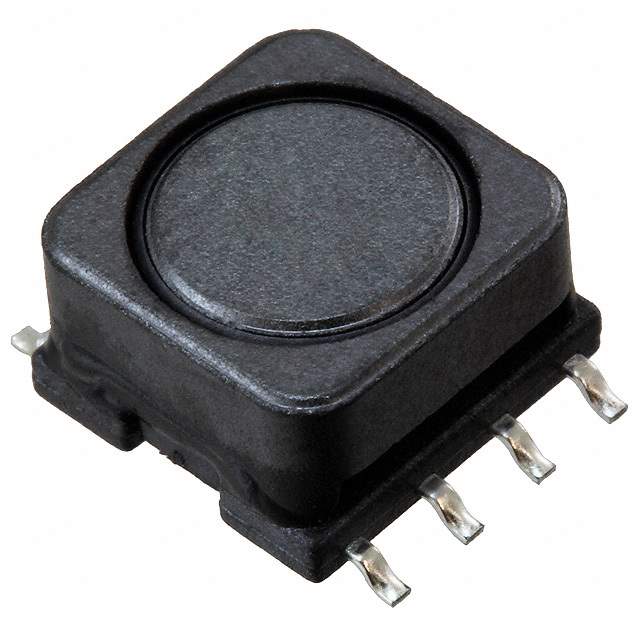

SRR0906-2R7ML Real Image
Same model may have multiple batches, images only for reference.

SRR0906-2R7ML

Part No SRR0906-2R7ML
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR0906-2R7ML Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR0906
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 2.7 µH
Tolerance ±20%
Current Rating (Amps) 3.2 A
Current - Saturation (Isat) 5.8A
Shielding Shielded
DC Resistance (DCR) 32mOhm Max
Q @ Freq 23 @ 7.96MHz
Frequency - Self Resonant 85MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case 8-SMD, Gull Wing
Dimension 0.394" L x 0.374" W (10.00mm x 9.50mm)
Height - Seated (Max) 0.248" (6.30mm)
Base Product Number SRR0906
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273653-SRR0906-2R7ML
Ultra Librarian 3D Model Ultra Librarian SRR0906-2R7ML CAD Model

Description

The SRR0906-2R7ML model is a drum core, wirewound type of inductor that comes in a shielded package for better performance.

  • Inductance: 2.7 µH
  • Tolerance: ±20%
  • DC Resistance: 32mOhm max
  • Current Rating: 3.2 A
  • Q @ Freq: 23 @ 7.96MHz
  • Frequency Self-Resonant: 85MHz
  • Package/Case: 8-SMD, Gull Wing
  • Height: 0.248" (6.30mm)
  • Dimension: 0.394" L x 0.374" W (10.00mm x 9.50mm)
  • Temperature Range: -40°C ~ 125°C
  • Material: Ferrite
  • ECCN: EAR99
