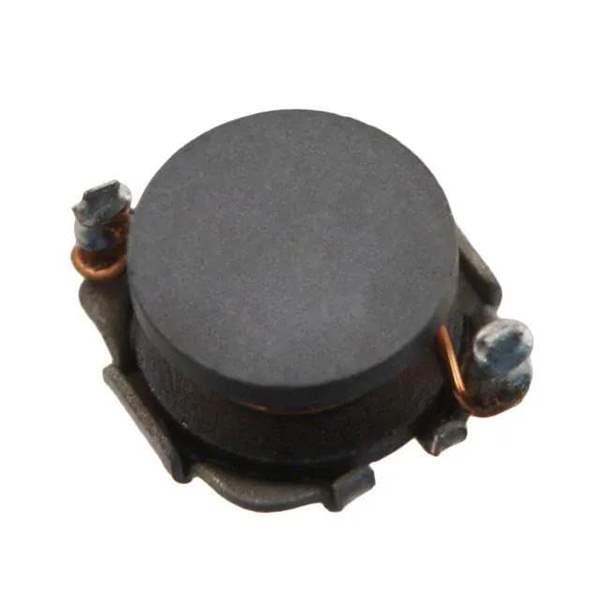

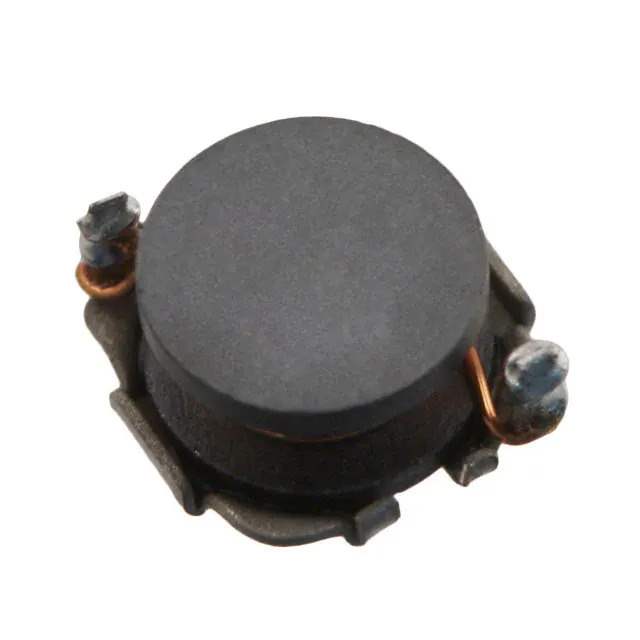

Same model may have multiple batches, images only for reference.

CDH53NP-151JC

Name: CDH53NP-151JC
Brand: Sumida America Components Inc.
SKU: 866208
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	CDH53NP-151JC
Manufacturer	Sumida America Components Inc.
Catalog	Fixed Inductors
Description	FIXED IND 150UH 310MA 2.4OHM SMD / 150 μH Unshielded Drum Core, Wirewound Inductor 310 mA 2.4Ohm Max Nonstandard
Datasheet	CDH53NP-151JC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Sumida America Components Inc.
Series	CDH53
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	150 µH
Tolerance	±5%
Current Rating (Amps)	310 mA
Shielding	Unshielded
DC Resistance (DCR)	2.4Ohm Max
Temperature Range - Operating	-40°C ~ 100°C
Inductance Frequency - Test	1 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.236" L x 0.205" W (6.00mm x 5.20mm)
Height - Seated (Max)	0.126" (3.20mm)
Standard Package	1,500 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	866208-CDH53NP-151JC
Ultra Librarian 3D Model	Ultra Librarian CDH53NP-151JC CAD Model

Alternative Products

Description

The Sumida America Components Inc. CDH53NP-151JC is a fixed inductor from Sumida America Components Inc.

Series: CDH53
Core: Drum Core
Design: Wirewound
Shielding: Unshielded
Package: Tape & Reel
Size: 0.236" L x 0.205" W (6.00mm x 5.20mm)
Height: 0.126" (3.20mm)
Inductance: 150 µH
Tolerance: ±5%
DC Resistance (DCR): 2.4 Ohm max
Current Rating: 310 mA
Operating Temperature Range: -40°C to 100°C
Status: Active
Standard Package: 1,500 pcs
Applications: Power supplies, filters, and DC-DC converters
