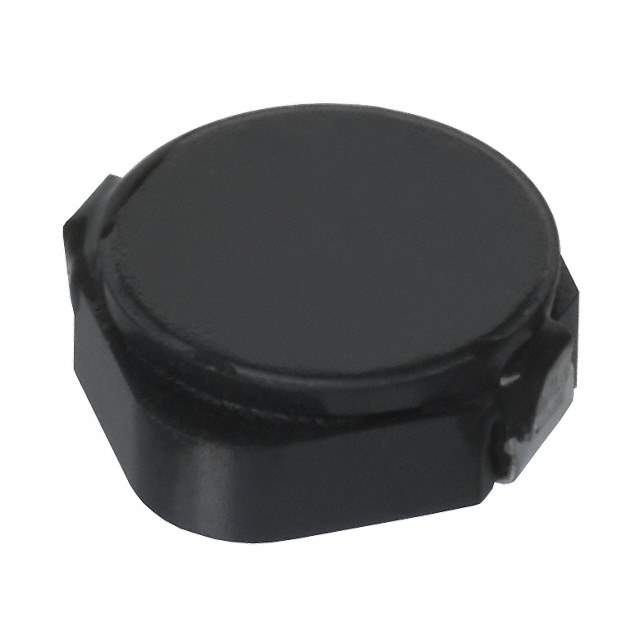

CDPH4D19FNP-220MC Real Image
Same model may have multiple batches, images only for reference.

CDPH4D19FNP-220MC

Part No CDPH4D19FNP-220MC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 22UH 1.44A 135 MOHM
Datasheet
CDPH4D19FNP-220MC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Status Active
Material - Core Ferrite
Inductance 22μH
Tolerance ±20%
Current Rating 1.44A
Current - Saturation 540mA
DC Resistance (DCR) 135 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.079" (2.00mm)
Win Source Part Number 013043-CDPH4D19FNP-220MC
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CDPH4D19FNP-220MC CAD Model

Description

CDPH4D19FNP-220MC Inductor

The CDPH4D19FNP-220MC is a high-performance inductor designed for efficient energy storage and conversion in electronic circuits. This component offers excellent reliability and is suitable for a wide range of applications.

  • Applications/Projects:
    • Power supplies
    • DC-DC converters
    • LED drivers
    • Telecommunication devices
  • Features and Benefits:
    • Low DC resistance for high energy efficiency
    • Compact size suitable for space-constrained applications
    • High saturation current for improved performance
    • Shielded construction minimizes EMI
  • Additional Details:
    • Inductance: 22μH
    • Maximum current: 1.5A
    • Operating temperature range: -40°C to +125°C
