Same model may have multiple batches, images only for reference.

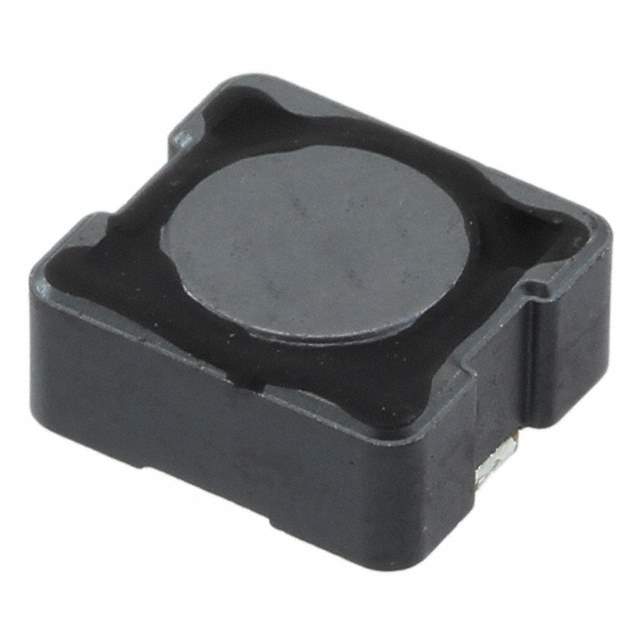

CDRH104R-470NC Real Image
Same model may have multiple batches, images only for reference.

CDRH104R-470NC

Part No CDRH104R-470NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 47UH 1.9A 128 MOHM SMD / Inductor Power Shielded Drum Core 47uH 30% 100KHz Ferrite 2.1A 0.128Ohm DCR T/R
Datasheet
CDRH104R-470NC Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Series CDRH104R
Packaging Reel package
Part Status Obsolete(EOL)
Inductance 47μH
Tolerance ±30%
Current Rating 1.9A
Current - Saturation 2.1A
Shielding Shielded
DC Resistance (DCR) 128 mOhm Max
Operating Temperature Range -40°C ~ 100°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Dimension 0.402" L x 0.394" W (10.20mm x 10.00mm)
Height - Seated (Maximum) 0.157" (4.00mm)
Win Source Part Number 771451-CDRH104R-470NC
Popularity Medium
Supply and Demand Status Limited
Family Name CDRH
Introduction Date July 29, 2002
ECCN EAR99
Ultra Librarian 3D Model Ultra Librarian CDRH104R-470NC CAD Model

Description

The CDRH104R-470NC is a 47μH shielded inductor from Sumida America Components Inc.

  • Current Rating: 1.9A
  • Saturation Current: 2.1A
  • Tolerance: ±30%
  • DCR: 128 mOhm max
  • Test Frequency: 100kHz
  • Operating Temperature Range: -40°C to 100°C
  • Mounting: SMD
  • Package: Nonstandard
  • Dimensions: 0.402" L x 0.394" W (10.20mm x 10.00mm)
  • Height Seated: 0.157" (4.00mm)
  • Series: CDRH
  • Category: Inductors, Coils, Chokes
  • Introduction Date: July 29, 2002
  • Status: Obsolete (EOL)
  • Alternative Parts: LGJ10145TS-470M1R4-H, MSS1048T-473MLC, MSS1038T-473MLD, MSS1038T-473MLC
