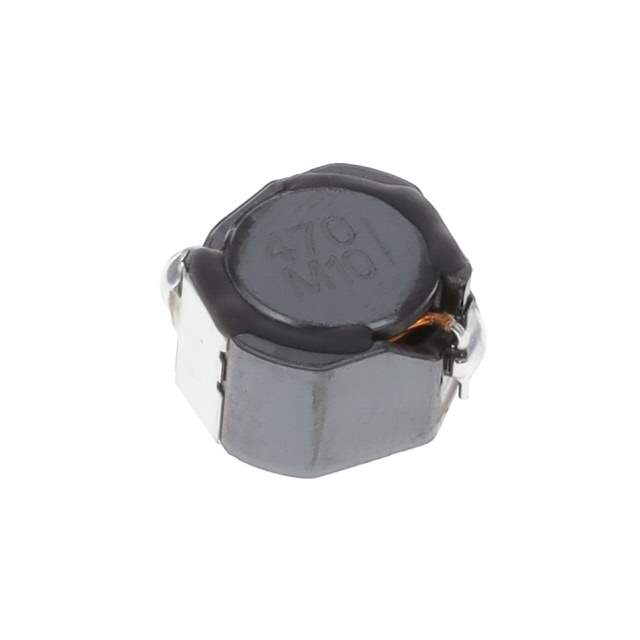

The CDRH10D60BT150NP-470MC is a power inductor manufactured by Sumida America Components Inc. It's primarily used in DC-DC converters and power supply circuits where a stable inductance and high current handling capability are required.

Applications

• DC-DC converters.
• Buck converters.
• Boost converters.
• Power supplies for portable devices.
• LED lighting drivers.
• Power amplifiers.

Features

• High Current Capacity: Handles significant current levels without saturation.
• Shielded Construction: Reduces electromagnetic interference (EMI).
• Low DC Resistance (DCR): Minimizes power loss and improves efficiency.
• Compact Size: Allows for use in space-constrained applications.
• Surface Mount Technology (SMT): Facilitates automated assembly.
• Ferrite Core: Provides stable inductance over a wide range of frequencies and temperatures.

Benefits

• Improved Power Supply Efficiency: Low DCR contributes to higher overall efficiency by minimizing power losses.
• Reduced EMI: Shielded construction helps to reduce electromagnetic emissions.
• Space Saving: Compact design allows for integration into smaller electronic devices.
• Reliable Performance: Robust design ensures consistent performance under varying operating conditions.
• Simplified Manufacturing: SMT compatibility makes the assembly process easier and more efficient.

Technical Specifications

The CDRH10D60BT150NP-470MC has an inductance value of 47µH and is designed for surface mount applications. It features a shielded construction and low DCR. The specific current rating, saturation current, and operating temperature range should be verified in the datasheet. The inductor's dimensions are approximately 10mm x 10mm x 6mm.

This power inductor is ideal for applications that require efficient power conversion and minimal EMI. Its compact size and SMT compatibility make it suitable for use in a wide range of electronic devices, particularly portable and space-constrained applications.
